Condesa
Lucia
About

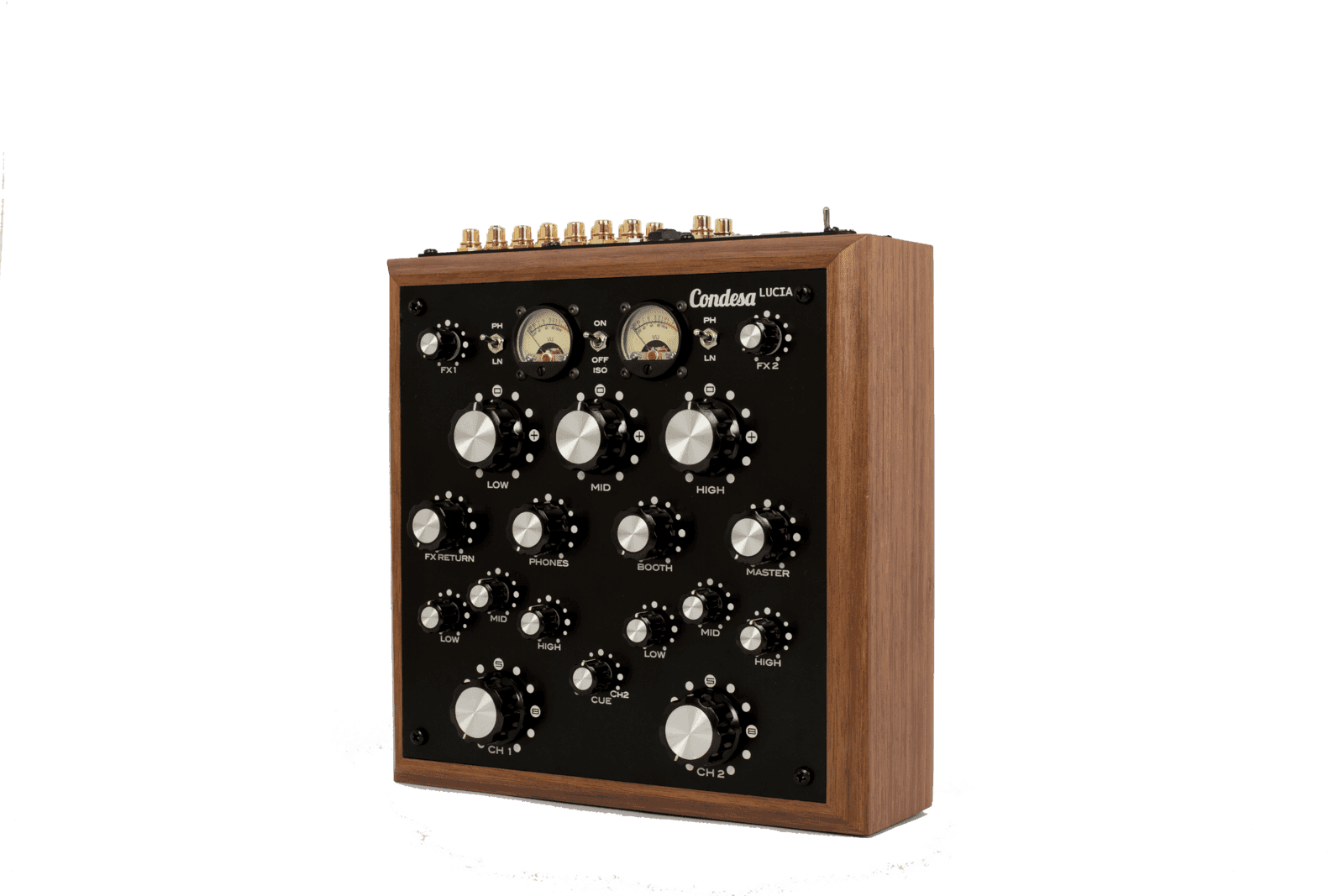

The Lucia by Condesa is a meticulously crafted 2-channel rotary mixer that adheres to the high-quality circuitry found in models like Allegra and Carmen for maintaining that distinct signature sound. It integrates a discrete 2 pole isolator and includes FX send/return for each channel, making it inc...
Related Content
SetupUnknown
A Personal Spin on Hi-Fi Heritage
The setup is a seamless blend of analog warmth and hands-on functionality. A Mastersounds 1210 turntable anchors the experience, a beacon for vinyl enthusiasts, while the Condesa Lucia mixer adds a ta
Condesa LuciaJbl L 65 JubalMaster Sounds Sl 1200+4 setupCard.more
Quick Stats
Setups Featured1
Features
Inputs
- Channels 1 & 2: Selectable stereo RCA phono (A) / line (B)

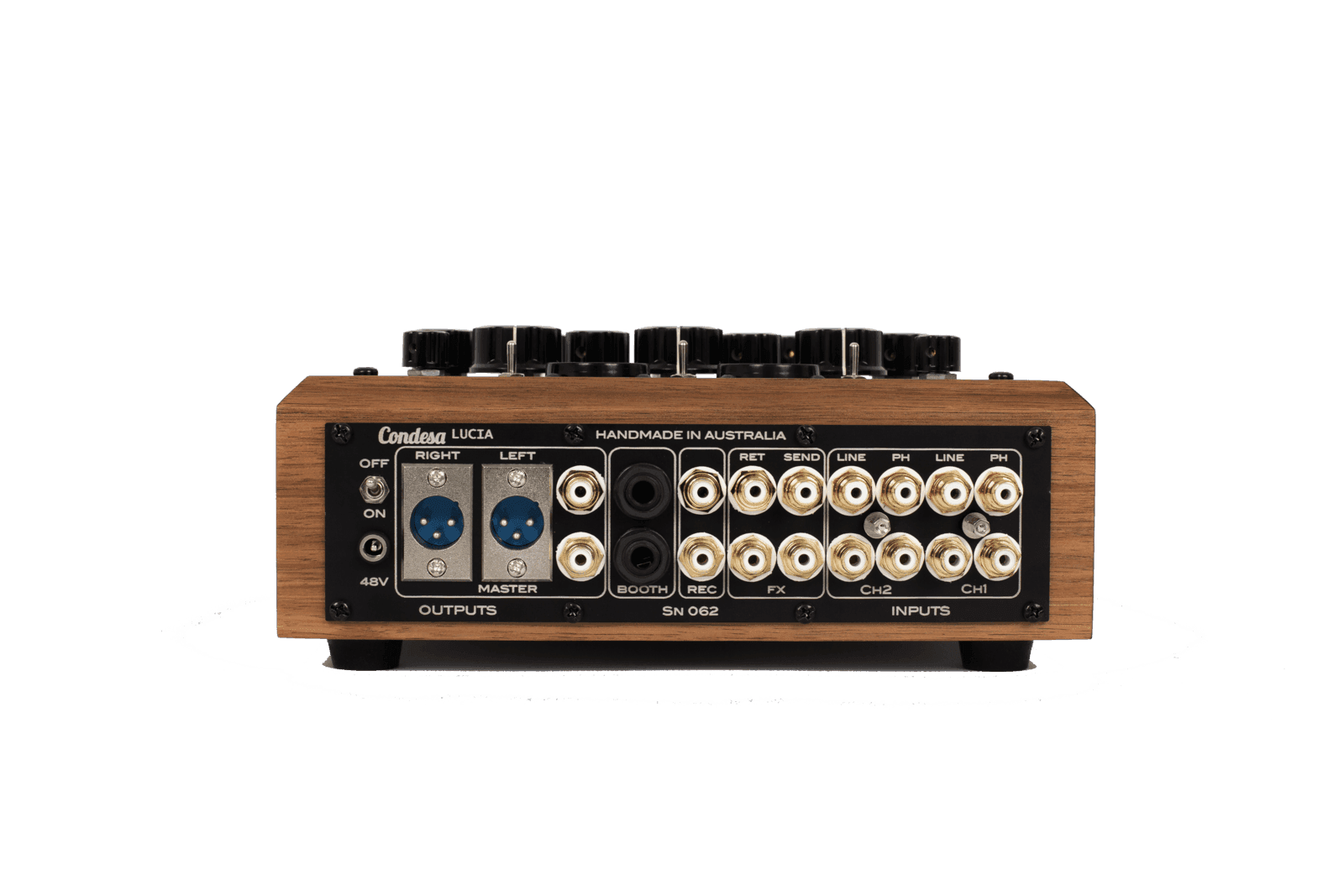

Outputs
- Stereo Master: Unbalanced RCA and transformer balanced XLR outputs
- Stereo Booth: Transformer balanced TRS
- Stereo Record: RCA unbalanced, fixed level
EQ
- Three-way Equaliser per Channel
- Lo: +/- 12dB @ 120Hz
- Mid: +/- 16dB @ 1kHz
- Hi: +/- 12dB @ 12kHz
Isolator
- Discrete Circuit: 2 pole, 12dB cut per octave
- Optional: 4 pole, 24dB cut per octave
- 3 Way Master Isolator
- Boost: 12dB, Cut to infinity
- Low: 10 - 280Hz
- Mid: 280Hz - 4kHz
- High: 4kHz - 20kHz
- True Bypass Switch
FX Send/Return
- FX Send per Channel: Level (post fader), RCA unbalanced output
- FX Return: Stereo return to mix with fader, RCA unbalanced input
Cueing System
- Cue Blend for channels 1 & 2
- Optional: Cue master switch - level of the final stereo mix in the headphones
- Optional: Split cue switch - mono split of channels 1 & 2 in the left and right headphones respectively
- Only one cue option per mixer can be fitted due to available space internally and externally.
Metering
- Stereo VU Meters: Master output, post volume (0vu = 0dbm)
Power
- 48v DC External Power Supply
- 100v-240v AC Input
- Optional: Linear power supply with mains selection switch, 110-240v
