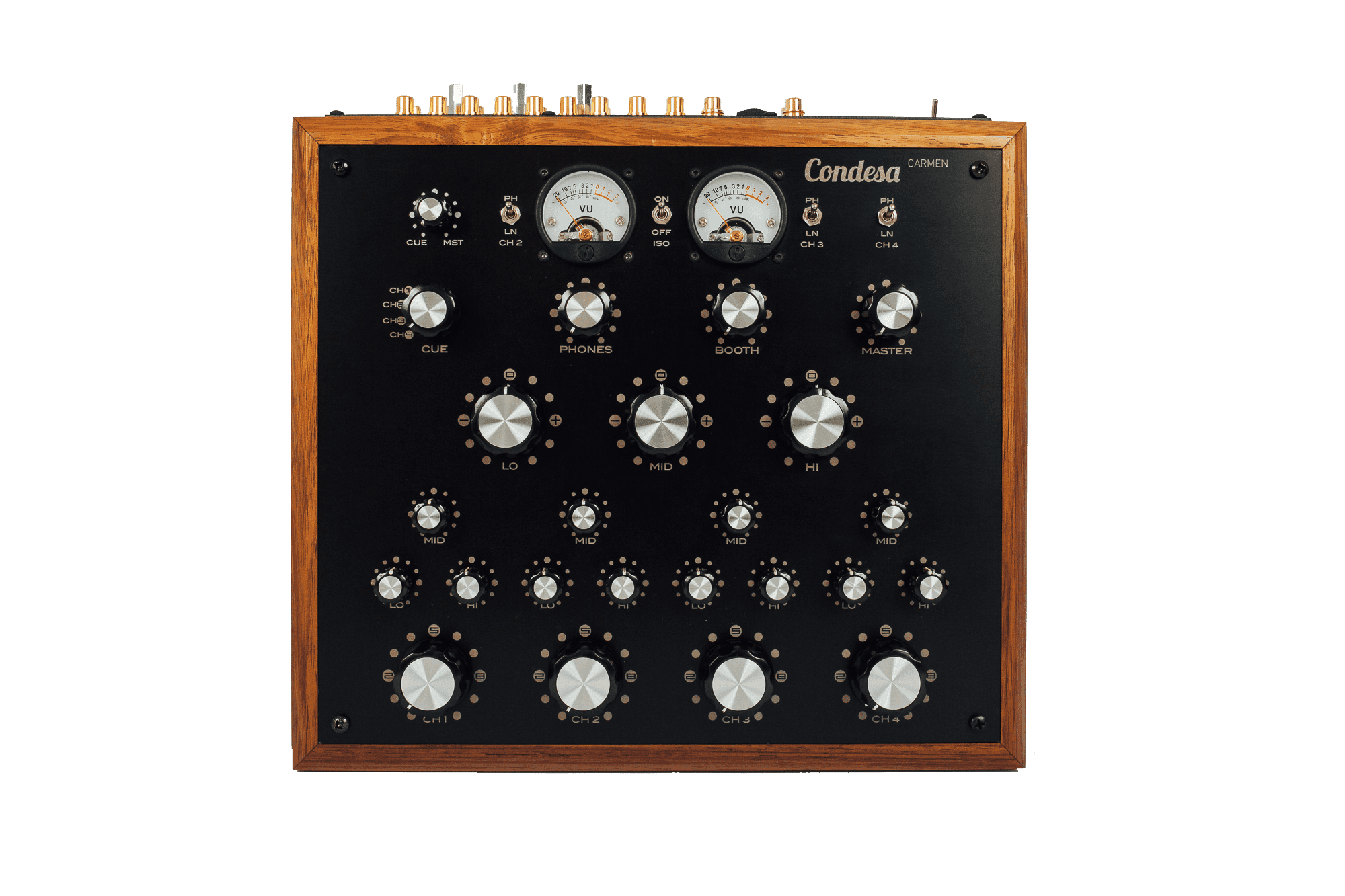

Carmen V

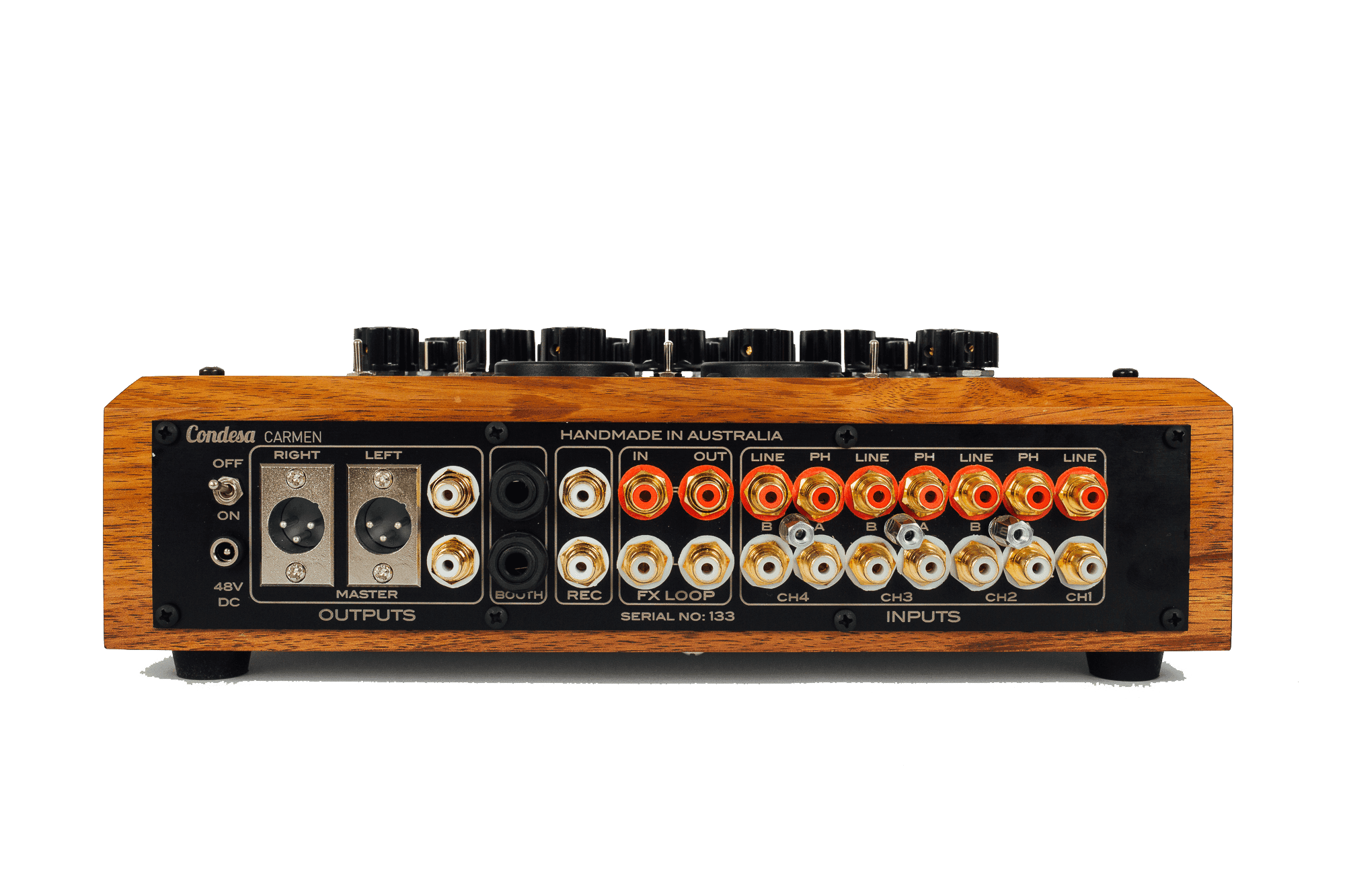

## Inputs - **Channel 1**: Fixed stereo line RCA - **Channels 2, 3, & 4**: Switchable stereo RCA phono (A) / line (B) - **Optional**: Mic input (TRS) - **CH1**: Switchable MC/LN ## Outputs - **Stereo Master**: Unbalanced RCA & transformer balanced XLR outputs - **Stereo Booth**: Transformer balanced TRS - **Stereo Record**: RCA unbalanced, fixed level ## EQ - **Type**: Three-way equalizer per channel - **Lo**: +/- 12dB @ 120Hz - **Mid**: +/- 12dB @ 1kHz - **Hi**: +/- 12dB @ 12kHz ## Isolator - **Type**: Discrete circuit 4 pole - 24dB cut per octave - **Features**: 3 way master isolator – boost 12dB, cut to infinity - **Frequency Range**: - Low (10 - 280Hz) - Mid (280Hz - 4kHz) - High (4kHz - 20kHz) - **True bypass switch** ## FX Loop (Pre Master) - **Type**: Unbalanced RCA stereo send - loop out - **Return**: Unbalanced RCA stereo return - loop in - **Optional**: FX send/return per channel, loop becomes a send/return path ## Cueing System - **Features**: Direct stereo cueing of any channel - **Cue to Master Blend Knob** ## Metering - **Type**: Stereo VU meters, tied to master output, post volume (0vu = 0dbm) ## Power - **Supply**: 48v DC external power supply - **AC Input**: 100v-240v - **Optional**: Linear power supply with mains selection switch, 110-240v
