Condesa
Lucia X
About

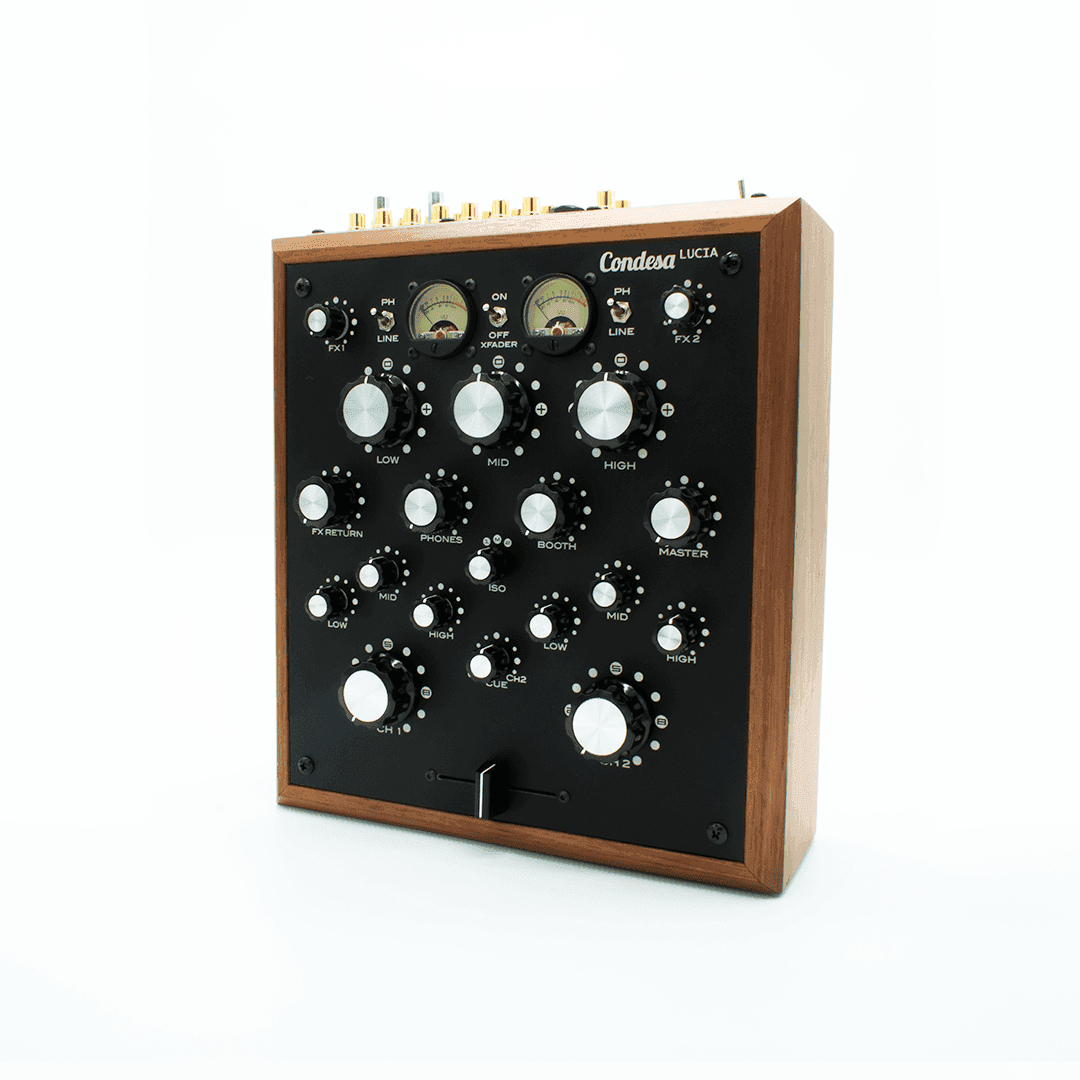

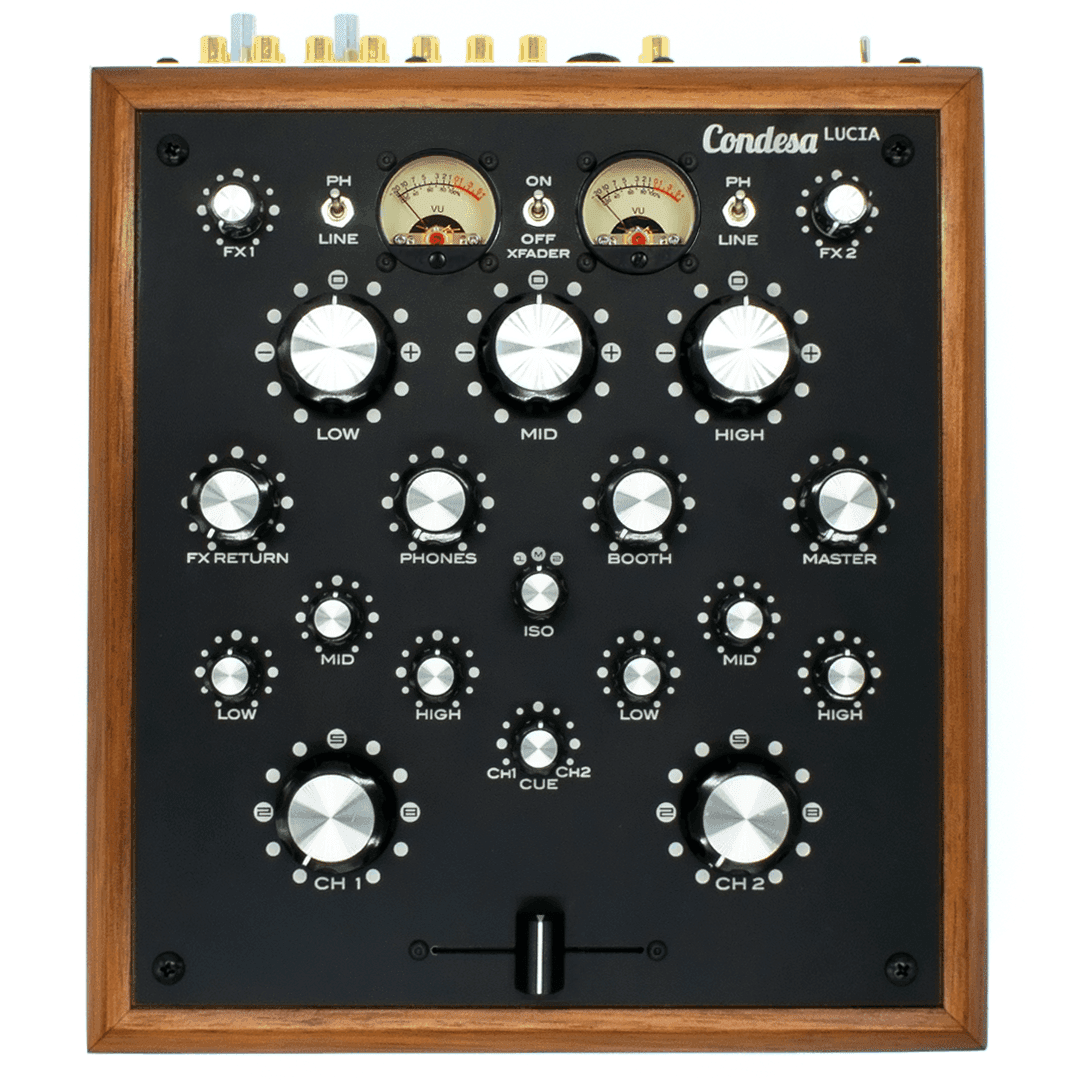

Lucia X, the latest innovation from Condesa, is a compact 2-channel rotary mixer enhanced with a new analog crossfader, featuring curve control and a bypass option for those who prefer traditional rotary mixing. This state-of-the-art mixer maintains Condesa’s signature sound, as it was developed wit...
Related Content
No related content yet
Features
## Inputs
- Channels 1 & 2: Selectable stereo RCA phono (A) / line (B)

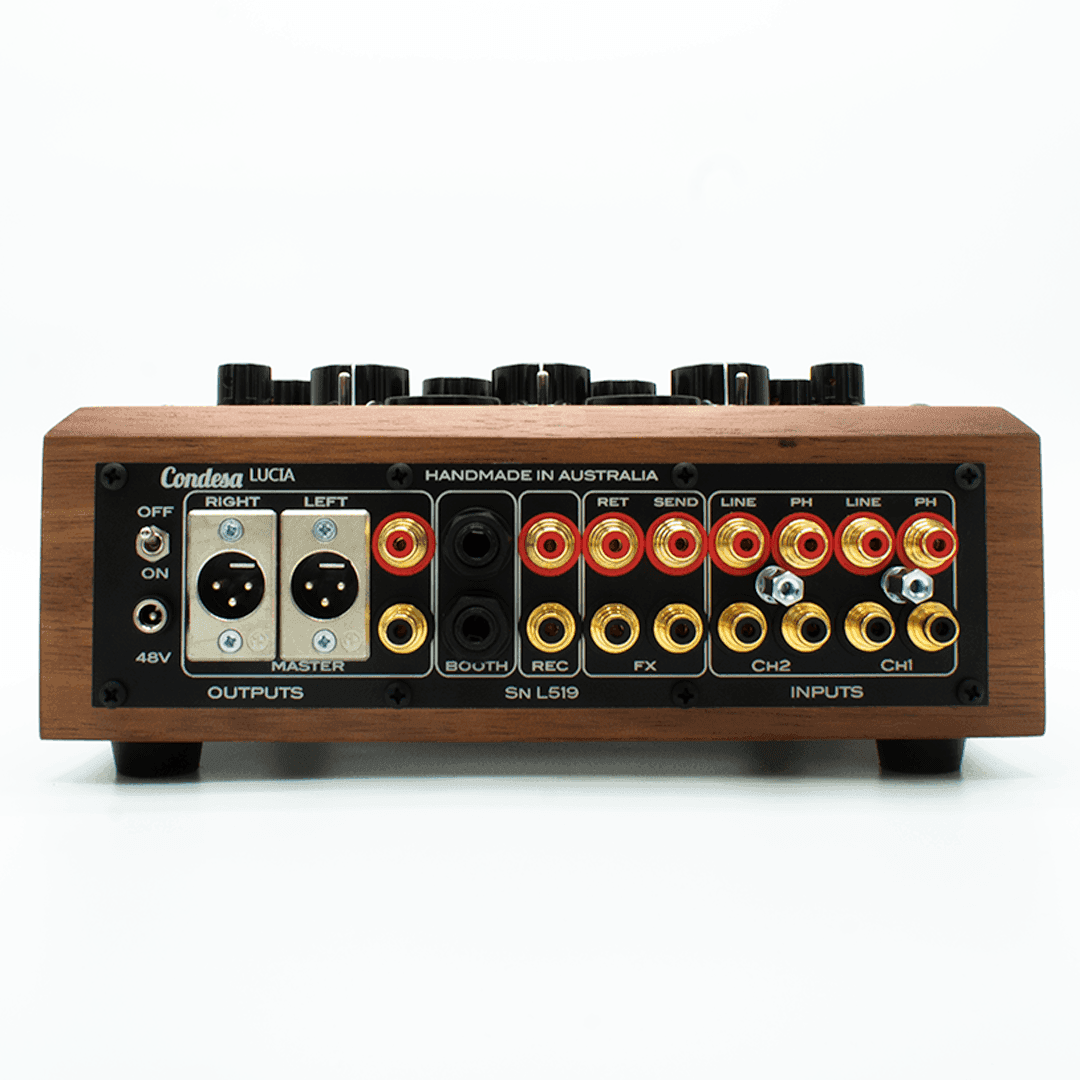

## Outputs
- Stereo master: Unbalanced RCA and transformer balanced XLR outputs
- Stereo booth: Transformer balanced TRS
- Stereo record: RCA unbalanced, fixed level
## EQ
- Three-way equaliser per channel
- Lo: +/- 12db @ 120Hz
- Mid: +/- 16db @ 1kHz
- Hi: +/- 12db @ 12kHz
## Isolator
- Discrete circuit 2 pole, 12db cut per octave
- Optional: 4 pole, 24db cut per octave
- 3 way master isolator: Boost 12db, cut to infinity
- Low: 10 - 280Hz
- Mid: 280Hz - 4kHz
- High: 4kHz - 20kHz
- ISO assign switch: CH1, master, CH2
## FX Send/Return
- FX send per channel level (post fader), RCA unbalanced output
- FX return, stereo return to mix with fader, RCA unbalanced input
## Crossfader
- TDK - CFX-45L
- Travel: 45mm
## Cueing System
- Cue blend for channels 1 & 2
## Metering
- Stereo VU meters, master output, post volume (0vu = 0dbm)
## Power
- 48v DC external power supply
- 100v-240v AC input
- Optional: Linear power supply with mains selection switch, 110-240v
