Simaudio
761
About

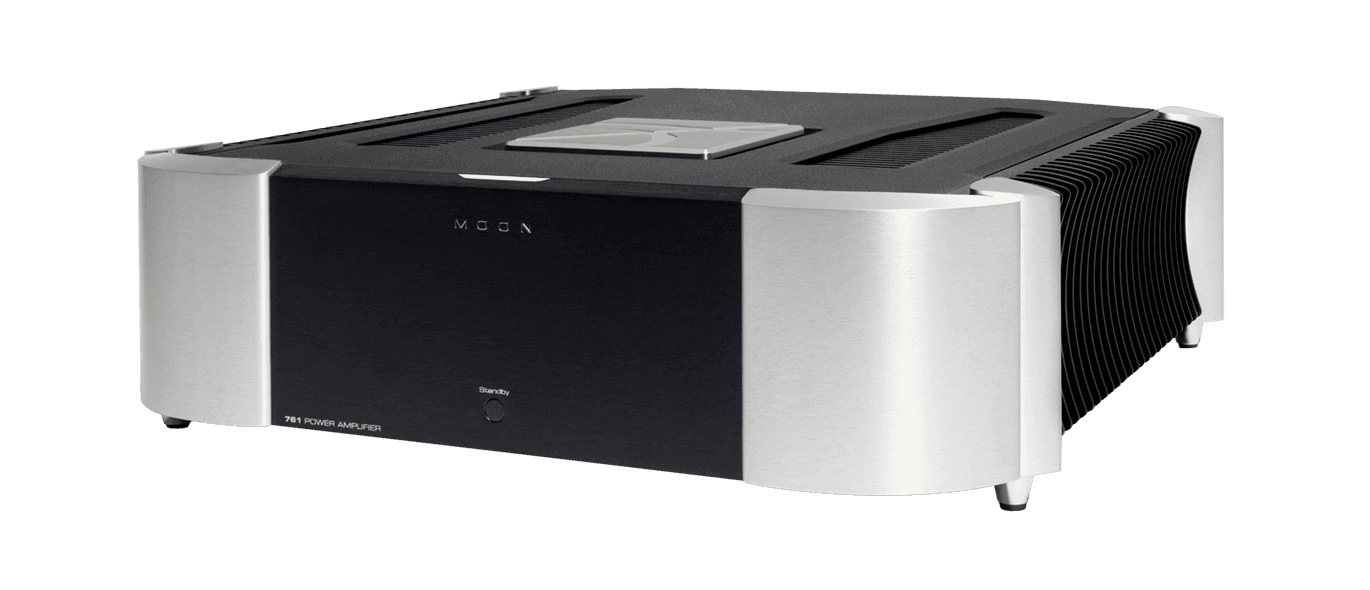

The Simaudio 761 is a power amplifier that excels in providing the necessary strength to deliver audio signals with precision and clarity. It is designed specifically to bridge preamplifiers and loudspeakers, focusing on the transparency of sound and the delicacy of the audio being played. The 761 i...
Related Content
MOON Unveils North Collection: A New Benchmark in Hi-Fi Audio
MOON's North Collection introduces six innovative hi-fi products with cutting-edge audio technology.
Features include MOON's Distortion Cancelling Amplifier (MDCA) circuit and MOON Damping Base (MDB) for optimal performance.
Combines superior sound quality with handcrafted design elements for visual and functional excellence.
Features
MDCA – MOON Distortion-Cancelling Amplifier Specifications
- Design Approach: No Global Feedback Design
- Transistors: MOON Transistors
- Configuration: Dual Mono Configuration
- Toggle Switch: Monaural Mode
- Connectivity: MOONLink
- Indicator: Multicolour LED Indicator
Power Output
- Stereo 8 Ω: 200 W
- Stereo 4 Ω: 400 W
- Mono 8 Ω: 600 W
Electrical Characteristics
- Input Sensitivity: 1.1 V
- Input Impedance: 47 kΩ
- Gain: 31 dB
- Frequency Response: 2 Hz – 100 kHz (+0 dB / –3 dB)
- Crosstalk: –116 dB
- Signal-to-Noise Ratio: 117 dB
- Total Harmonic Distortion + Noise (@ 1 W): 0.002%
- Total Harmonic Distortion + Noise (@ 200 W): 0.001%
- Intermodulation Distortion: 0.002%
- Damping Factor: 800
Power Consumption
- Idle: 55 W
- Full Power Standby: 50 W
- Low Power Standby: 1.25 W
Physical Aspects
- Shipping Weight: 79 lbs / 36 kg
- Dimensions (W x H x D):
- Inches: 18.95 x 5.53 x 17.53
- Centimeters: 48.1 x 14 x 44.5
