ci140
About

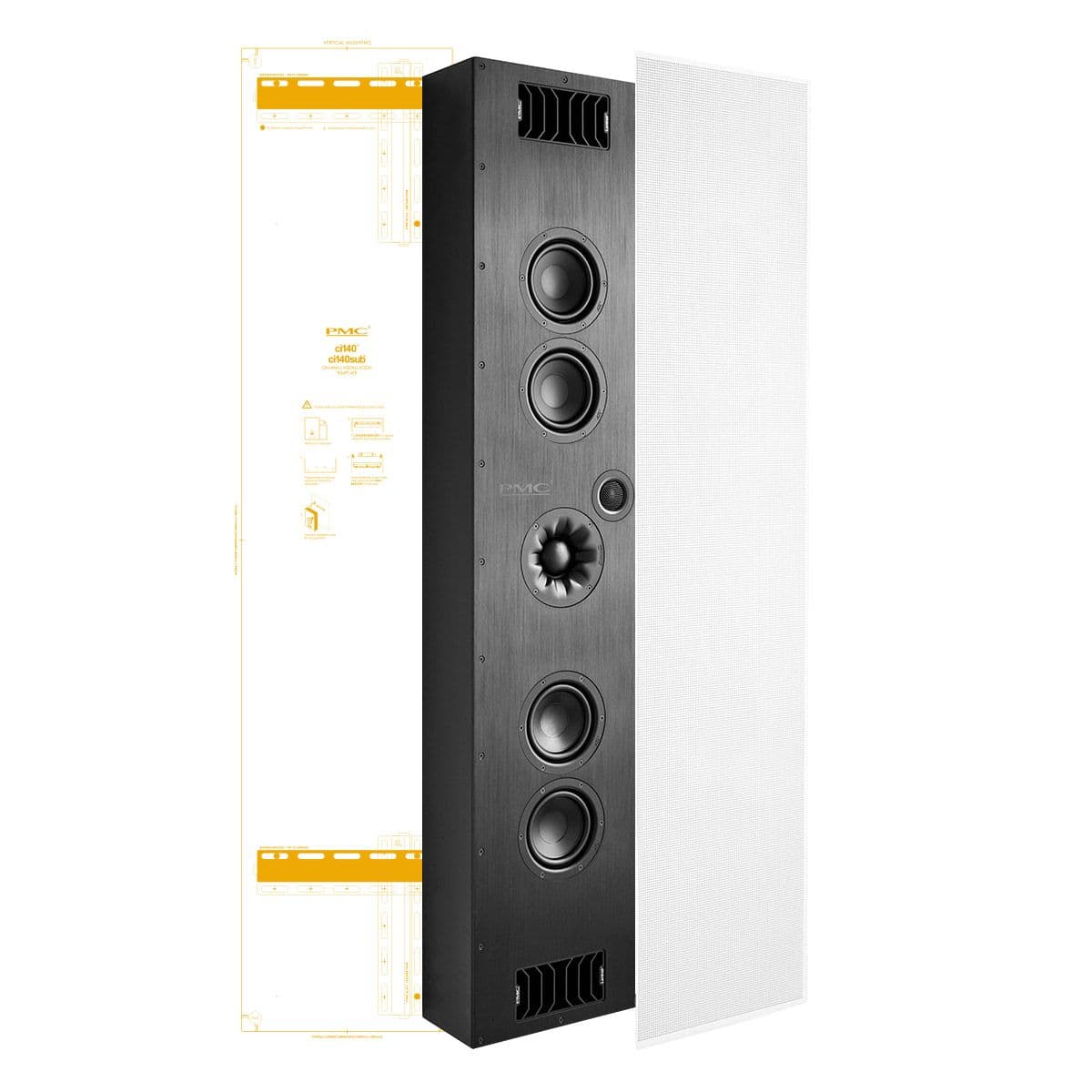

The ci140 is the epitome of on-wall home theatre loudspeaker design, engineered to deliver a truly immersive audio experience. It features a powerful complement of four 5” LTX™ long-throw woofers, combined with the Laminair-enhanced Advanced Transmission Line, a 2” soft-dome mid-range unit, and a 27...
Related Content
No related content yet
Features
# CI140 Technical Specifications
**Available Finishes:**
- CI Series Black
**Dimensions:**
- Height: 1400mm (55")
- Width: 300mm (11.8")
- Depth: 153mm (6")
**Drive Units:**
- Low Frequency (LF): 4 x 133mm (5.25”) Natural Fibre LTx™
- Mid Frequency (MF): 50mm (2”) PMC55 n-compass™ soft dome
- High Frequency (HF): 27mm (1”) soft dome
**Effective ATL™ Length:**
- 2.3m (7.5ft)
**Frequency Response:**
- 32Hz (-3dB), 29Hz (-6dB) to 25kHz
**Impedance:**
- 4 Ohms
**Input Connectors:**
- 1 pair 4mm sockets
**Sensitivity:**
- 93dB (2.83v @1m)
**Recommended Amp Power:**
- 10 - 300W
**Recommended Drive Unit Torque Settings:**
- HF: 0.5Nm
- MF: 0.6Nm
- LF: 0.6Nm
**Weight:**
- Boxed: 33kg
- Unboxed (with Grille): 26.5kg
- Without Grille: 24.5kg
