About

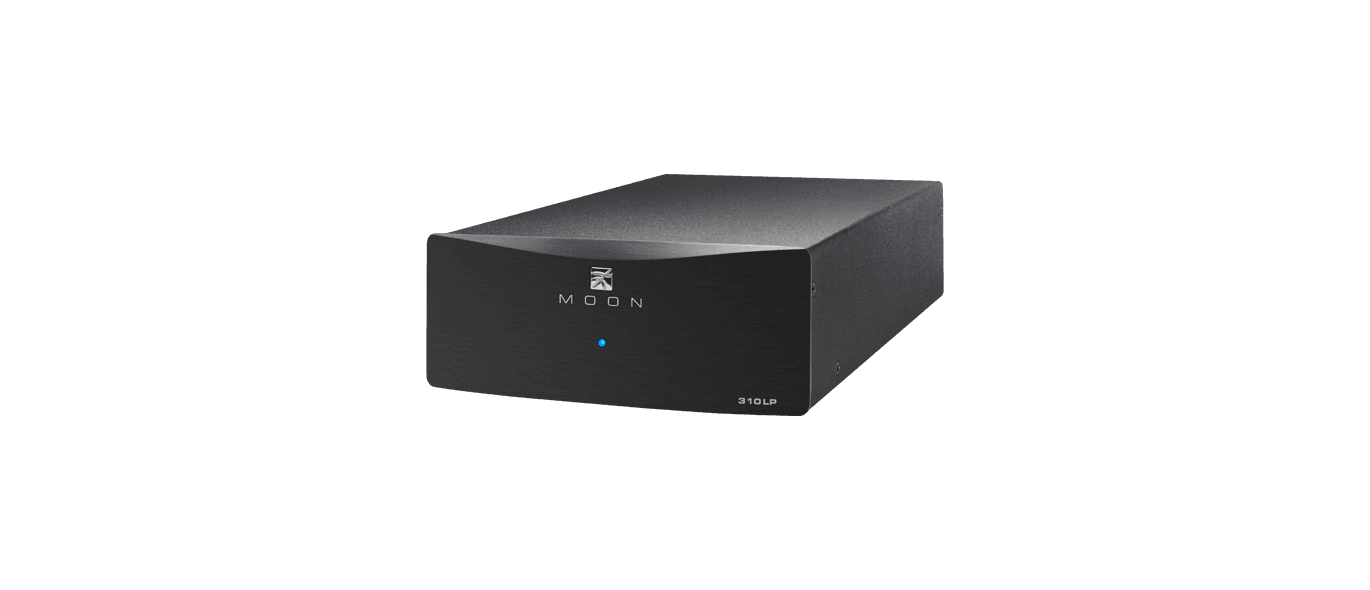

The 310LP is renowned for its exceptional performance, which has been further enhanced with modern technological advances. These improvements have enabled an upgrade in the sonics of the original 310LP and a significant reduction in the noise floor of its onboard power supply, eliminating the need f...
Related Content
No related content yet
Features
- **Power Supply:**
- Large isolated power supply with a separate circuit board.
- Features a toroidal transformer.
- Dual stages of voltage regulation.
- Custom MOON electrolytic capacitors.
- i2DCf (Independent Inductive DC Filtering); one inductor per IC in the audio signal path.
- **Connectivity:**
- Single-ended RCA output connectors.
- Balanced XLR output connectors.
- **Circuit Design:**
- 4-Layer printed circuit boards with pure copper tracings.
- Symmetrical circuit design with premium quality electronic components.
- **Performance:**
- S/N Ratio (full scale @ 40dB gain): 110dBr
- S/N Ratio (full scale @ 66dB gain): 88dBr
- Frequency Response: 20Hz - 20kHz ±0.5dB
- Crosstalk @ 1kHz: -100dB
- Output impedance: 50Ω
- THD (20Hz - 20kHz): 0.001%
- Intermodulation distortion: 0.009%
- Input overload @ 40dB gain: 58mV RMS @ 1kHz
- Input overload @ 66dB gain: 3.0mV RMS @ 1kHz
- **Physical Specifications:**
- Shipping weight: 7.0 lbs. / 3.1 Kgs
- Dimensions (W x H x D): 7.0 x 3.0 x 11.0 in / 17.8 x 7.6 x 28.0 cm.
Tags
Phono Preamplifier
