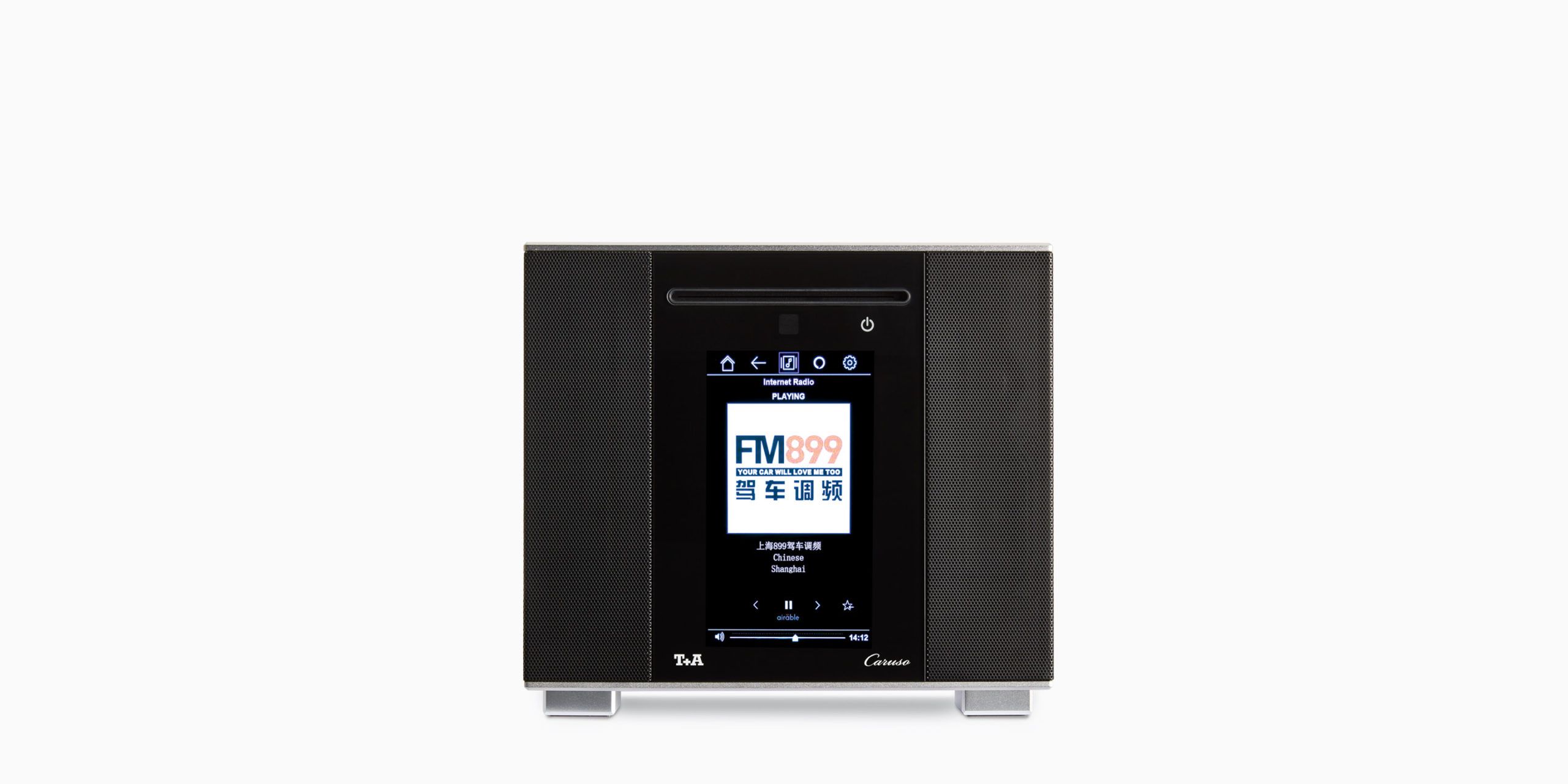

Caruso CV

Audio Formats and Media Compatibility

• Supported Disc Media: CD-DA (12cm), CD-R, CD-RW, Audio CD
• Digital Audio Formats: AAC (LC/HE-AAC), WAV, FLAC, MP3, Vorbis, WMA, AMR-NB, AMR-MB, ALAC
• Media Standards: MPEG 1 Layer 3 (MP3), Windows Media Audio (WMA, DRM not supported), CD-Text
• Frequency Response: 2 Hz - 20 kHz
• Signal-to-Noise Ratio: 100 dB

Streaming Services

• Supported Services: Tidal, Deezer, Amazon Music, Qobuz, Spotify Connect (subscription required)
• Streaming Protocols: DLNA, Q Play

Internet and Connectivity

• LAN: Fast Ethernet 10/100 Base-T
• WLAN: 802.11 b/g/n
• USB: 1 x USB 2.0 Master mode

Wireless Standards and Codecs

• Bluetooth Protocols: A2DP 1.2 (Audio), AVRCP 1.4 (Control)
• Audio Codecs: aptX®, MP3, AAC, SBC
• Features: Bi-directional sink + source

Radio

• Internet Radio: Airable Internet Radio Service (> 11000 stations worldwide)
• FM Radio: 87.5 - 108 MHz; sensitivity 1 µV; S/N > 65 dBA
• DAB+: 168 - 240 MHz (band III); sensitivity 2.0 µV; S/N > 96 dBA
• Radio Features: RDS/RDBS, station name (PS), station logo, radiotext (TR)

Audio Output

• Total Output Power: 200 Watts nominal, 300 Watts peak
• Distortion: < 0.02 %

Connectors

• Inputs:
  • 2 x AUX (RCA) 2 Veff max
  • 1 x USB 2.0 Master mode
  • 1 x coaxial SP/DIF (192 kSps)
  • 1 x TOS-Link (96 kSps)
• Outputs:
  • Pre-Amp (RCA) 2 Veff
  • Subwoofer (RCA)
  • Headphone 32 Ohm@30mW (3.5 mm jack)

Sound Management

• System: 2 channel stereo system with DSP controlled sound characteristics
• Drive Units:
  • 1 x 170 mm long-throw woofer
  • 2 x 170 mm long-throw passive radiators
  • 2 x 100/40 mm high-performance midrange
  • 2 x 20 mm cloth dome tweeters

Power and Dimensions

• Mains Supply: 100-127 V, 220-240 V, 50-60 Hz
• Power Consumption: Max. 300 Watts, Eco standby < 0.5 Watts, Comfort standby 5 W
• Dimensions: 27 x 29 x 29 cm (10.6 x 11.4 x 11.4 inches)
• Weight: 12 kg (26.5 lb)

Accessories

• Remote control, power cord, USB cable for charging RC, antenna Bluetooth, antenna WLAN, telescopic antenna for radio

Finishes

• Case: Black with silver top and bottom covers
