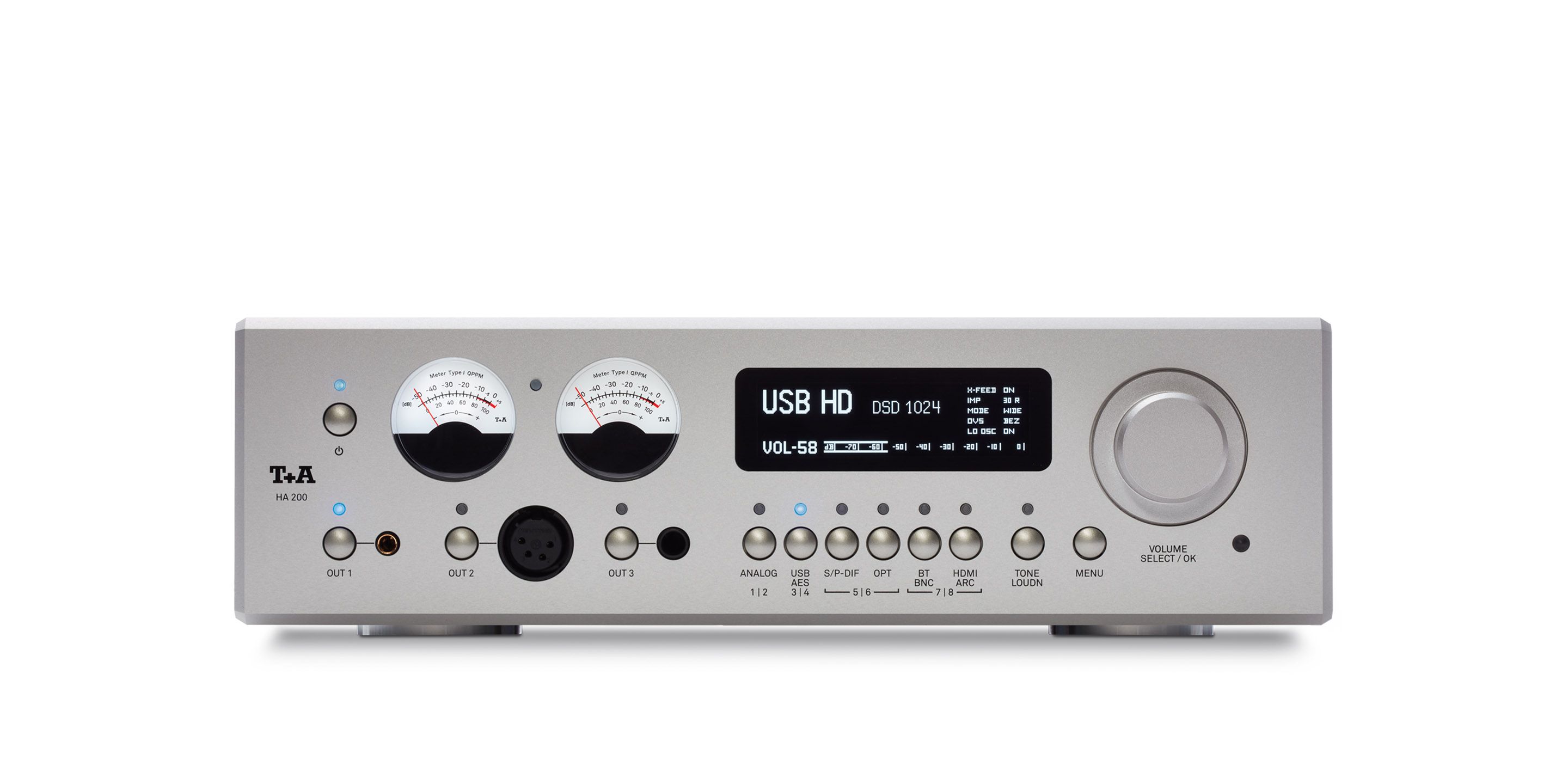

The HA 200 headphone amplifier marks a significant achievement as it represents the first foray into headphone amplifiers by its creators. It brings together a synergy of analogue and digital technologies encased in meticulously designed mechanics. The analogue section leverages the distinctive T+A HV technology known for its robust output stages that operate in Class-A mode. This design choice ensures that it can efficiently drive the most demanding headphones with its ample idle current.

The versatility of the HA 200 is further enhanced by its ability to adapt to various headphones through selectable impedance on its three outputs, catering to the specific requirements and preferences of the user. An optional crossfeed function enhances the auditory experience by simulating a more natural soundstage directly in front of the listener.

Power supply robustness is a critical feature, with separate toroidal transformers for its analogue and digital sections that ensure ample and clean power delivery. The digital prowess of the HA 200 is highlighted by its proprietary T+A True 1-Bit D/A converter that supports up to DSD 1024 and a quadruple converter that handles PCM files up to 32 Bit/768 kHz. This dual-decoder architecture ensures that each audio format is processed with uncompromised fidelity.

Aesthetically, the HA 200 boasts a design that is both substantial in size and build, reflecting the complexity and high component count of more than 2300 individual parts. Constructed from non-magnetic aluminium, and featuring a front panel crafted from solid plate material akin to the HV series, it epitomizes durability and stylish design. Its operational status and system metrics are accurately relayed through precise QPPM metering and a large display screen. The inclusion of the FM8 IR remote control allows for comprehensive control over the amplifier's functions.

Overall, the HA 200 has been crafted without compromises, with a clear focus on delivering the highest possible quality in musical reproduction. This commitment to excellence makes it a pinnacle offering in the realm of headphone amplifiers.

Features

Audio Performance

  • Frequency Response: + 0 / − 3 dB, 0.1 Hz – 200 kHz
  • Signal-to-Noise Ratio: 110/114 dB
  • THD (Total Harmonic Distortion): < 0.001%
  • Intermodulation Distortion: < 0.001%
  • Channel Separation: > 108 dB

Amplifier Details

  • Class A Operation: Up to 700 mA
  • Headphone Outputs:
    • 6.3 mm plug
    • 4.4 mm Pentaconn
    • XLR-4 pin
  • Impedances: 8, 12, 18, 25, 40, 80 Ohms

Connectivity

  • Inputs:
    • High level (RCA): 250 mVeff ... 4.5 Veff / 10 kOhms
    • Balanced (XLR): 500 mVeff ... 9 Veff / 20 kOhms
  • Bluetooth: A2DP (Audio), AVRCP 1.4 (Control) / Supports aptX® HD, SBC, AAC

Digital Audio

  • PCM: Double-Differential-Quadruple-Converter with four 32-Bit Sigma-Delta D/A converters per channel, Conversion rate up to 768 kSps
  • DSD: T+A-True-1Bit DSD D/A converter, supports up to DSD 1024 (49.2 MHz), native bitstream
  • Upsampling: T+A signal-processor – synchronous upsampling with selectable algorithms (FIR short, FIR long, Bezier/IIR, Bezier, NOS)

Sound Control

  • Loudness: Switchable, adjustable based on speaker efficiency
  • Sound Adjustment: Switchable, channel separated. Bass and treble from -6 dB to +8 dB
  • Analogue Filter: Phase-linear Bessel filter 3rd order, switchable with 60 or 120 kHz cutoff frequency

General Specifications

  • Power Supply: 100 – 120 V or 200 – 240 V, 50 – 60 Hz, 100 Watts
  • Standby Power Consumption: < 0.5 Watts
  • Dimensions: Height 10 cm × Width 32 cm × Depth 34 cm (4 x 12.6 x 13.4 inches)
  • Weight: 6.5 kg (14.4 lbs)
  • Accessories Included:
    • Remote control FM8
    • Power cord
    • USB cable for charging RC
    • USB cable 2.0 for DAC
    • RCA cable
  • Finishes:
    • Alu silver anodized (43)
    • Alu black anodized (42)
