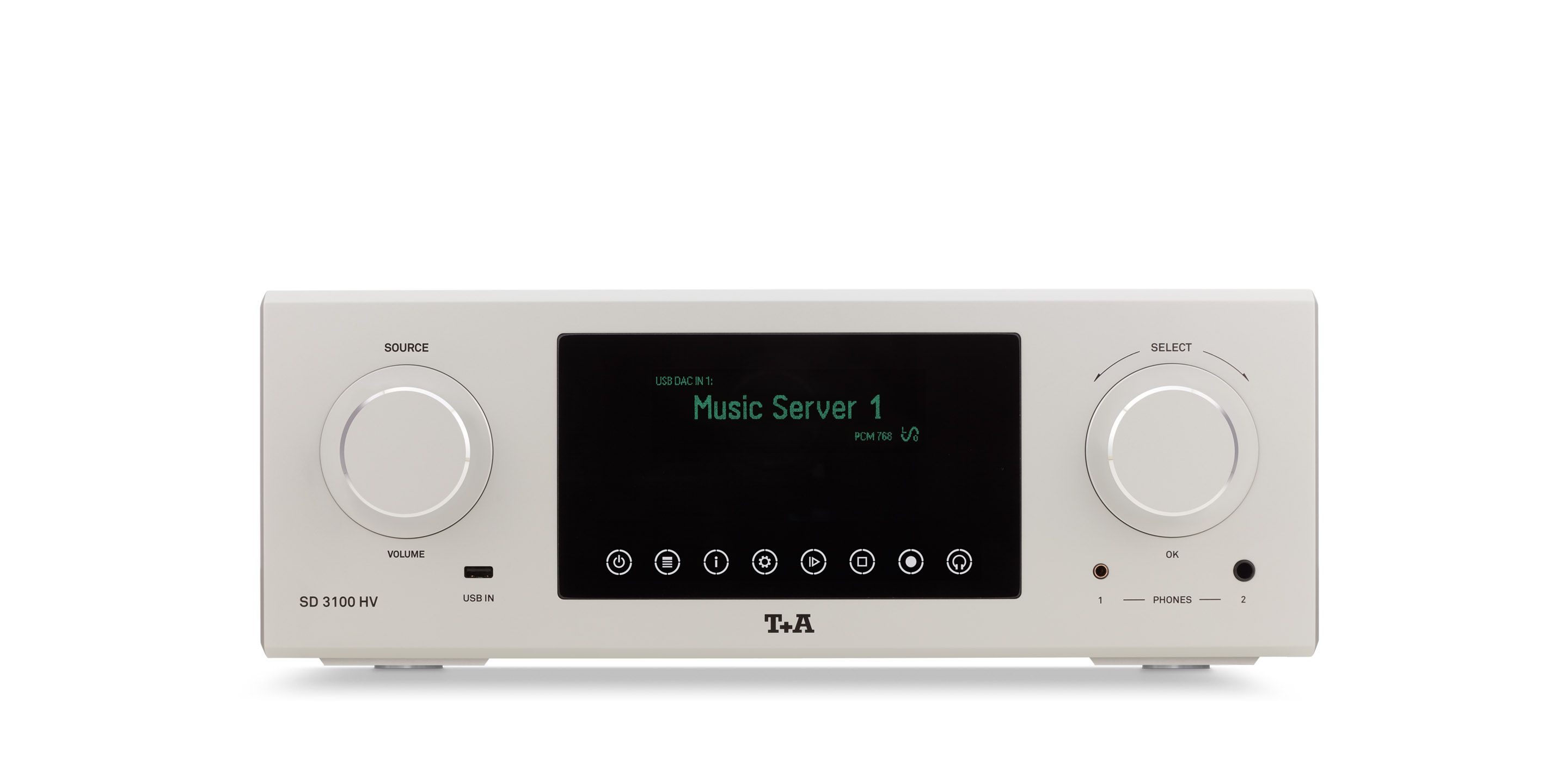

SD 3100 HV

Outputs

• Coaxial (RCA) / Balanced (XLR):
  • 2.5 Veff / 20 Ohm
  • 5.0 Veff / 40 Ohm
• Headphone output:
  • 6.3 mm Klinke (20 Ohm)
  • 4.4 mm Pentaconn (8 Ohm)

Digital Outputs

• 1x coax, IEC 60958 S/P-DIF (LPCM)

Digital Inputs

• 1 x AES-EBU: 32...192 kHz / 16-24 Bit
• 6 x S/P-DIF:
  • 2 x Standard Coax
  • 2 x high quality BNC: 32...192 kHz / 16-24 Bit
  • 2 x optical TOS-Link: 32...192 kHz / 16-24 Bit
• 2 x USB DAC:
  • Device-Mode with max. 768 kSps (PCM) and DSD 1024*
  • Supports asynchronous data transfer.
  • *DSD512 and DSD 1024 with Windows PC with appropriate driver installed or Linux PC with 4.4 Kernel or higher only.
• 2 x USB Master-Mode for USB-Mass storage (Stick or HDD)
• 2 x HDMI IN, 1 x HDMI OUT with ARC
• 1 x IPA (LVDS)

Network Connection

• LAN: Fast Ethernet 10/100/1000 Base-T
• WLAN: 802.11 b/g/n

PCM

• Double-Differential-Quadruple-Converter with four 32-Bit Sigma-Delta D/A-Converter per channel.
• 705.6 / 768 kSps conversion rate

DSD

• T+A-True-1Bit DSD D/A-Converter, up to DSD 1024 (49.2 MHz), native bitstream

Upsampling (PCM)

• T+A-Signalprocessor – synchronous upsampling with 4 selectable oversampling algorithms:
  • FIR short
  • FIR long
  • Bezier/IIR
  • Bezier

Analogue Filter

• Phase-linear Bessel filter 3rd order, switchable with 60 or 120 kHz cut off frequency

Frequency Response

• PCM 44.1 kSps: 2 Hz - 20 kHz
• PCM 48 kSps: 2 Hz - 22 kHz / DSD 64: 2 Hz - 44 kHz
• PCM 96 kSps: 2 Hz - 40 kHz / DSD 128: 2 Hz - 60 kHz
• PCM 192 kSps: 2 Hz - 80 kHz / DSD 256: 2 Hz - 80 kHz
• PCM 384 kSps: 2 Hz - 100 kHz / DSD 512: 2 Hz - 100 kHz
• PCM 768 kSps: 2 Hz - 120 kHz / DSD 1024: 2 Hz - 120 kHz

THD

• < 0.001 %

S/N Ratio

• 117 dB

Channel Separation

• 110 dB

Formats/Standards

• MP3, WMA, AAC, OGG Vorbis, FLAC, WAV, AIFF, ALAC
• UPnP AV, T+A Control

Data Rates

• PCM 32...192 kHz, 16/24 Bit
• MP3 bis 320 kBit, variable and constant bit rate

Music Services

• Tidal, Deezer, Qobuz (Subscription required)

Features

• Gapless Playback for MP3 (Lame), WAV, FLAC
• T+A MusicNavigator App for iOS and Android

Internet Radio

• Airable Internet Radio Service (> 11000 Stations worldwide)

FM, FM-HD

• 87.5 - 108 MHz; sensitivity 1 µV; S/N > 65 dBA

DAB, DAB+

• 168 - 240 MHz (Band III); sensitivity 2.0 µV, S/N > 96 dBA

Features

• RDS/RDBS, Station name (PS), Program type (PTY), Radiotext (RT)

Bluetooth Standard / Codec

• A2DP (Audio), AVRCP 1.4 (Control) / aptX®, MP3, SBC

Mains

• 2 x 110-120 V or 220-240 V, 50-60 Hz
• Operation: 2 x 40 W
• Standby: < 0.5 W

Dimensions (W x H x D) / Weight

• 17 x 46 x 46 cm / 26 kg

Accessories

• 2x power cord, remote control F 3100, BNC adapter

Optional Accessories

• Power Three HD (Carbon)
• Power Bar
• HV-Individual finish (Individual colours on request)

Finishes

• Silver lacquer 47
• Titanium lacquer 64
