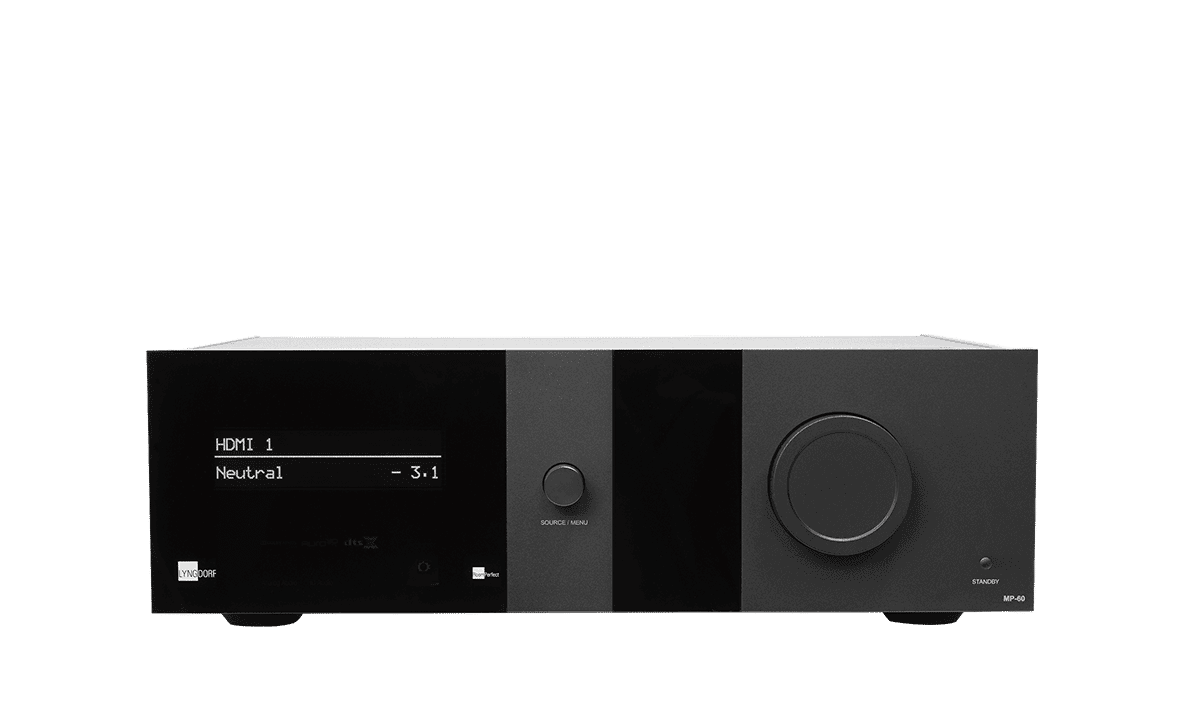

MP-60 2.1

### Decoding: - **Channels**: 16 decoding/upmixing channels - **Formats Supported**: - Dolby Atmos® - DTS:X Pro (14 channels) - AURO-3D® (14 channels) - All legacy codecs - **Post-processing Options**: - Dolby Surround - AURO-MATIC® - DTS Neural:X ### Audio Inputs: - 5 x HDMI (1 x HDMI eARC) ≤192kHz/24bit - 1 x AES/EBU S/P-DIF input ≤192kHz/24bit - 3 x S/P-DIF coaxial inputs ≤192kHz/24bit - 4 x S/P-DIF optical inputs ≤96kHz/24bit - 1 x USB audio input ≤192kHz/32bit - 1 x microphone input (XLR) for RoomPerfect™ ### Audio Outputs: - 16 x XLR analog outputs (16 Vrms) - 1 x SPDIF coax digital ZONE output (Fixed 96kHz/24bit) ### Audio Specifications: - **Frequency Response**: ±0.5dB from 20 to 20,000 Hz - **Total Harmonic Distortion**: 0.005% max from 20 to 20,000 Hz ### EQ: - RoomPerfect - Subwoofer level assistant - 32 x adjustable voicings holding ≤8 shelving, high/low pass or parametric filters with adjustable gain and Q ### Media Player: - Supports: Internet radio, AirPlay 2, Spotify Connect, Tidal Connect with Dolby Atmos Music, Roon Ready, DLNA - Supports FAT32 based media storage (uPnP/DLNA formats) ### Video Inputs: - 5 x HDMI™ (2.1 – HDCP 2.3) - Supports 8k30 RGB/YCbCr 4:4:4 10-bit, 8k60 YCbCr 4:2:0 10-bit, 4k120 4:4:4 10-bit - Features: Variable Refresh Rate (VRR), Fast Vactive (FVA), Auto Low Latency Mode (ALLM) - HDR Formats: HDR, Dolby Vision™, HLG ### Video Outputs: - 2 x HDMI (HDCP 2.3) ### Video Scaling: - Upscaling to 4K Ultra High Definition - Does not downscale 4K video ### Control Interfaces: - 1 x DB9 RS232 connector - 2 x IR sensor inputs, 1 x IR output (loop from one sensor input) - 1 x trigger input, 4 x trigger outputs - 1 x RJ45 Ethernet LAN connector - 2 x USB A connectors - 1 x SD card slot (Backup – storage for system software and settings) ### Accessories Included: - RoomPerfect microphone - Microphone stand - Microphone cable - RF remote control ### Optional Modules: - 16 channel DCI-compliant digital AES/EBU input for movie servers (up to 32bit/192kHz) - 16 channel digital AES/EBU output module (24bit, 48kHz or 96kHz selectable) - 16 channel AES67 digital input/output module (up to 32bit/192kHz input, output always 24bit/48kHz) ### Remote Control: - Infrared/RF ### Placement Options: - Rack mount - Freestanding ### Heat Dissipation: - 340 BTU ### Dimensions: - 14.7 x 45.0 x 37.0 cm (H x W x D) - 5.8 x 17.7 x 14.6 in (H x W x D) ### Weight: - 9 kg / 19 lbs ### Downloads: - Technical drawings - Owner’s manual - External control manual - AES integration manual - HDMI 2.1 cable recommendations - Speaker and Bass Management Guide - Control4 driver - Latest software - New speaker setup guide - MP voicings - Fact sheet - Pictures
