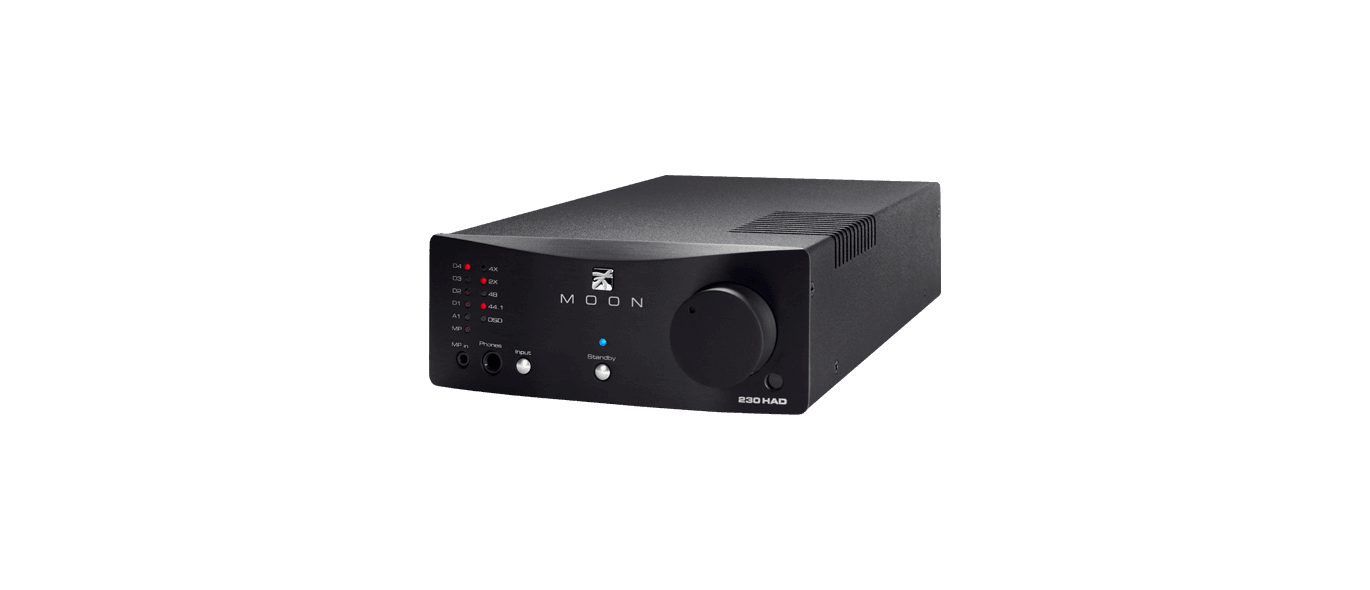

230HAD

#### Inputs: - 1x RCA (single-ended) on rear - 1x 1/8” jack (single-ended) on front panel #### Outputs: - 1x ¼” TRS headphone jack - Fixed and variable single-ended line-level RCA stereo pairs #### Digital-to-Analog Converter (DAC): - Fully asynchronous - Four digital inputs: - 2x S/PDIF - 1x TosLink - 1x USB - DSD Support: DSD64, DSD128, DSD256 (USB input only) - PCM Support up to 24-bit/192kHz (all inputs) and 32-bit/384kHz (USB input only) #### Amplifier: - Type: Pure analog with transconductance circuit #### Power Supply: - 1 toroidal transformer - 8 stages of DC voltage regulation #### Performance: - Output Power @ 600Ω: 100mW - Output Power @ 300Ω: 200mW - Output Power @ 50Ω: 1W - Headphone Impedance Compatibility: 20 - 600Ω - Frequency Response (audible): 20Hz - 20kHz ±0.1dB - Frequency Response (full range): 5Hz - 100kHz +0/-3dB - THD @ 1kHz, 0dBFS (A-weighted): 0.005% - Intermodulation Distortion: 0.005% - Signal-to-Noise Ratio: 115dB - Crosstalk: -80dB - Input/Output impedance: 22KΩ / 1.25Ω #### Physical Specifications: - Weight: 6.2 lb / 2.8 kg - Dimensions (W x H x D): 7.0 x 3.0 x 11.0 inches / 17.8 x 7.6 x 28.0 cm
