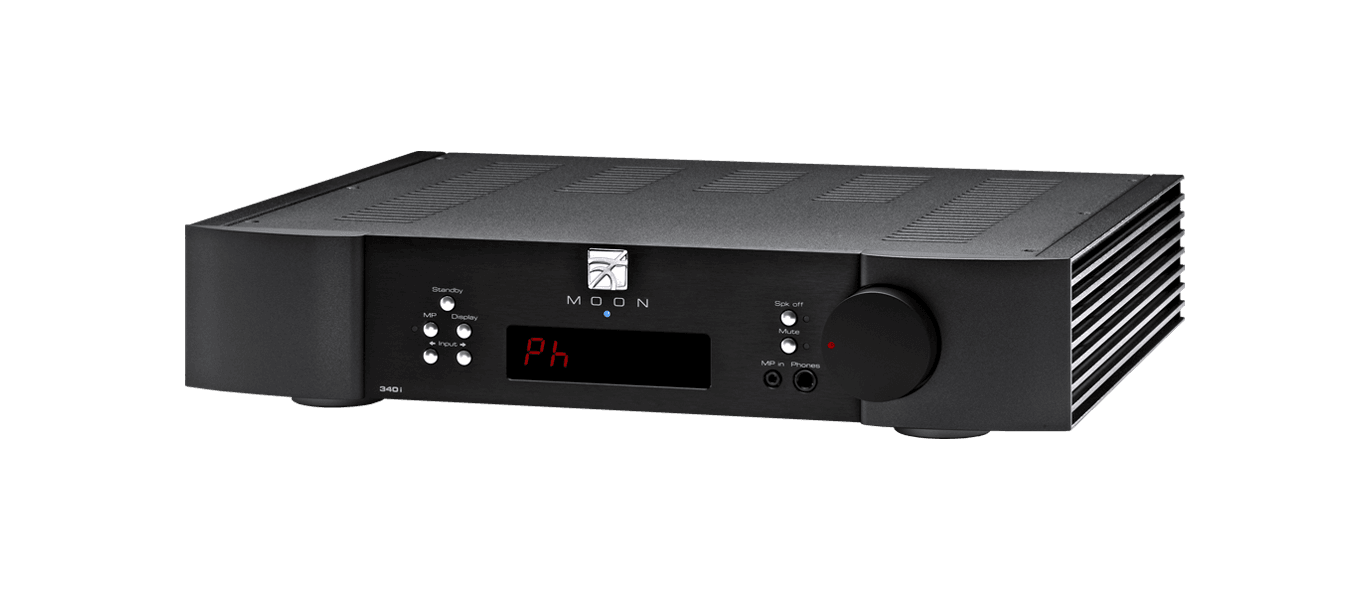

340i X

- **Audio Inputs:** - 6 line-level inputs including a front-mounted 1/8” mini-jack for personal media players. - 1 pair of balanced inputs (XLR). - **Audio Outputs:** - Headphone output on 1/4” jack located on the front panel. - **Power Supply:** - A massive oversized custom toroidal transformer design. - **Amplifier Class:** - “Class A” output to 5 watts for greater efficiency. - **Special Features:** - One audio input functioning as a “pass-through”, bypassing the gain stage. - Precision matched proprietary MOON Bipolar output transistors for improved bass response and accurate sonic reproduction. - **Performance:** - Output Power: 100 W per channel at 8Ω, 200 W per channel at 4Ω. - Input Sensitivity: 370mV - 3.0V RMS. - Input Impedance: 11,000Ω. - Gain: 37dB. - Signal-to-noise Ratio: 110dB @ full power. - Frequency Response: 2Hz - 90kHz +0/-3dB. - Crosstalk: -88dB. - THD: 0.015% at 1 W, 0.05% at 100 W (20Hz - 20kHz). - Intermodulation Distortion: 0.03%. - **Digital Inputs (Optional):** - S/PDIF, USB, Optical. - **Digital Audio Specs:** - Maximum PCM Resolution: 32-bit / 384kHz. - DSD sample rates: DSD64, DSD128 & DSD256. - **Physical Specs:** - Shipping weight: 28 lb / 13 kg. - Dimensions: 16.9 x 3.5 x 14.8 in (42.9 x 8.9 x 37.6 cm).
