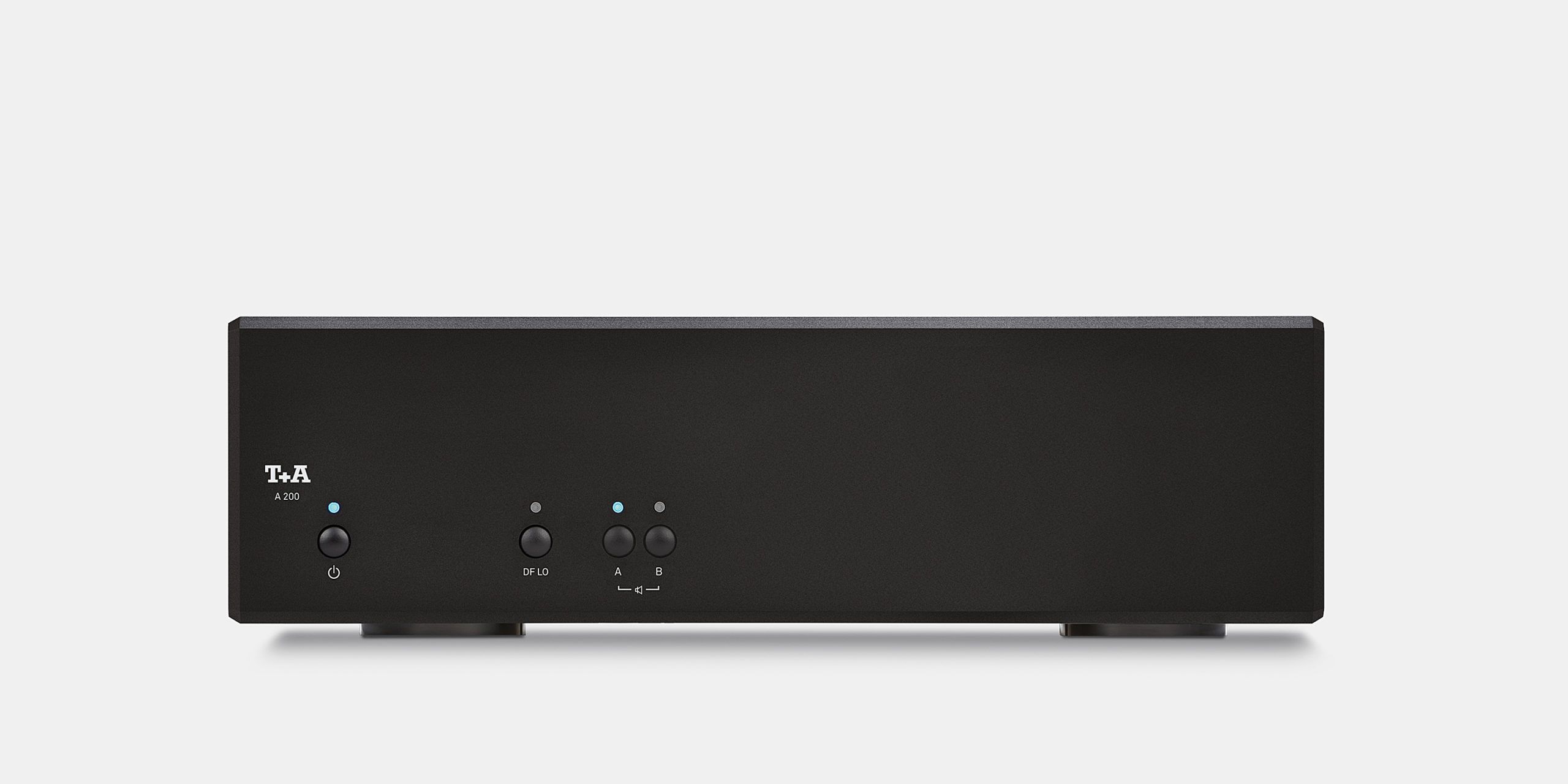

The A 200 is a meticulously engineered output stage designed to deliver not just high power but also refined audiophile sound characteristics. With 250 Watts of continuous power per channel, it ensures robust performance without compromising on the subtle nuances like detail, resolution, and fine dynamics that are crucial for a high-fidelity audio experience. Serving as both a necessary component and an aesthetic statement, the heatsinks of the A 200 display the impressive power capability while providing efficient heat dissipation, even under maximum load conditions.

Developed to function as either a significant addition to an existing audio system or as the core of a specialized chain of audiophile-grade devices in tandem with the Series 200, the A 200 stands out through its excellent functionality and high performance. Its design philosophy emphasizes practical utilization of power, achieved with precision and efficiency. To this end, a new circuit topology has been created. This blends T+A's distinctive HV and High-Frequency sine-wave mains power supply technology with the cutting-edge PURIFI Eigentakt™ output stages, leading to a revolutionary conversion of raw power into an unmatched audiophile experience.

Built entirely in-house, the circuits and circuit boards of the A 200 are crafted by a dedicated development team incorporating the PURIFI modules for enhanced audio performance. Additionally, the damping factor of the A 200 can be adjusted to complement specific loudspeakers, providing a warmer or softer sound image if desired. This level of customization ensures that the A 200 not only meets but adapts to the intricate demands of audiophile listeners, making it a standout choice in its category.

Features

Power Output

  • Nominal power per channel:
    • 250 Watts @ 4 Ohms
    • 125 Watts @ 8 Ohms

Audio Performance

  • Frequency Response: +0 / −3 dB, 1 Hz – 60 kHz
  • Signal to Noise Ratio: 113 dB
  • Total Harmonic Distortion (THD): < 0.002%
  • Intermodulation Distortion: < 0.002%
  • Channel Separation: > 103 dB
  • Damping Factor: > 800 / DF LO > 70
  • Gain Factor: 37.4 (31.4 dB)

Input Sensitivity

  • High Level (RCA): 800 mVeff / 5.8 kOhms
  • Balanced (XLR): 1.6 Veff / 20 kOhms

Electrical Specifications

  • Mains Voltage: 220 – 240 V, 50 – 60 Hz
  • Power Consumption:
    • Max: 600 Watts
    • Idling: 25 Watts with no signal
  • Standby Power Consumption: < 0.5 Watts

Physical Attributes

  • Dimensions: 10 × 32 × 34 cm | 4 x 12.6 x 13.4 inches
  • Weight: 5 kg | 11 lbs
  • Finishes:
    • Alu silver anodized (43)
    • Alu schwarz anodized (42)

Accessories

  • Included: Power cord, E2-Link-cable
