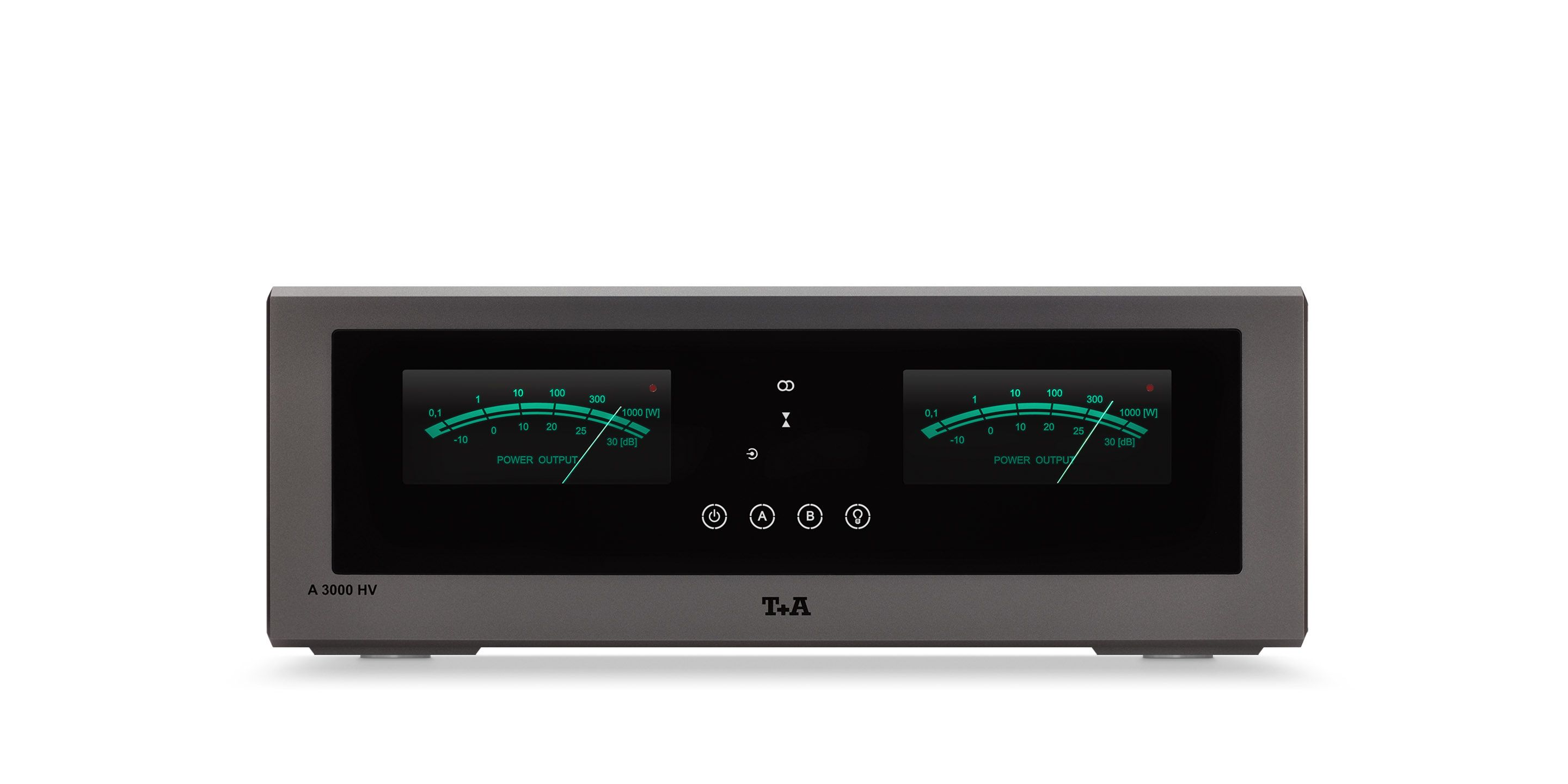

The A 3000 HV is the ideal power amplifier and complement to the P 3000 HV pre-amplifier. It is designed as a stereo power amplifier, but can also be configured to work in mono mode, in which guise it is capable of delivering twice the current and in which it doubles the pure Class-A mode. Thanks to...
Related Content
No related content yet
Features
### Output Stage
- All measurements at 120 / 240 V mains voltage
- Into 8 Ohms:
- 300 Watts
- 380 Watts
- 380 Watts
- 430 Watts
- Into 4 Ohms:
- 500 Watts
- 700 Watts
- 650 Watts
- 800 Watts
### Performance
- Power Bandwidth: 1 Hz – 150 kHz
- Frequency Response (+0 / -3 dB): 0.5 Hz – 180 kHz
- Slew Rate: 60 V/μs
- Damping Factor: > 65
- Signal/Noise Ratio: > 115 dB
- Total Harmonic Distortion: < 0.03%
### Electrical
- Reservoir Capacity: 120,000 μF
- Mains: 110-120 V/60 Hz or 220-240 V/50 Hz / 1500 W
- Standby: < 0.5 W
### Features
- Trigger Input: +5 ... 20V for external switching-on
### Optional Accessories
- PS 3000 HV Power Supply
- Power Three HD (Carbon)
- Power Bar
- Audio Quad (Carbon)
- Speaker Hex (Carbon)
- HV-Individual Finish (Individual colours on request)
- IP Control
### Physical
- Dimensions (H x W x D): 17 x 46 x 46 cm
- Weight: 38 kg
### Finishes
- Case: Silver lacquer 47 or titanium lacquer 64
- Heat Sink: Black 42
