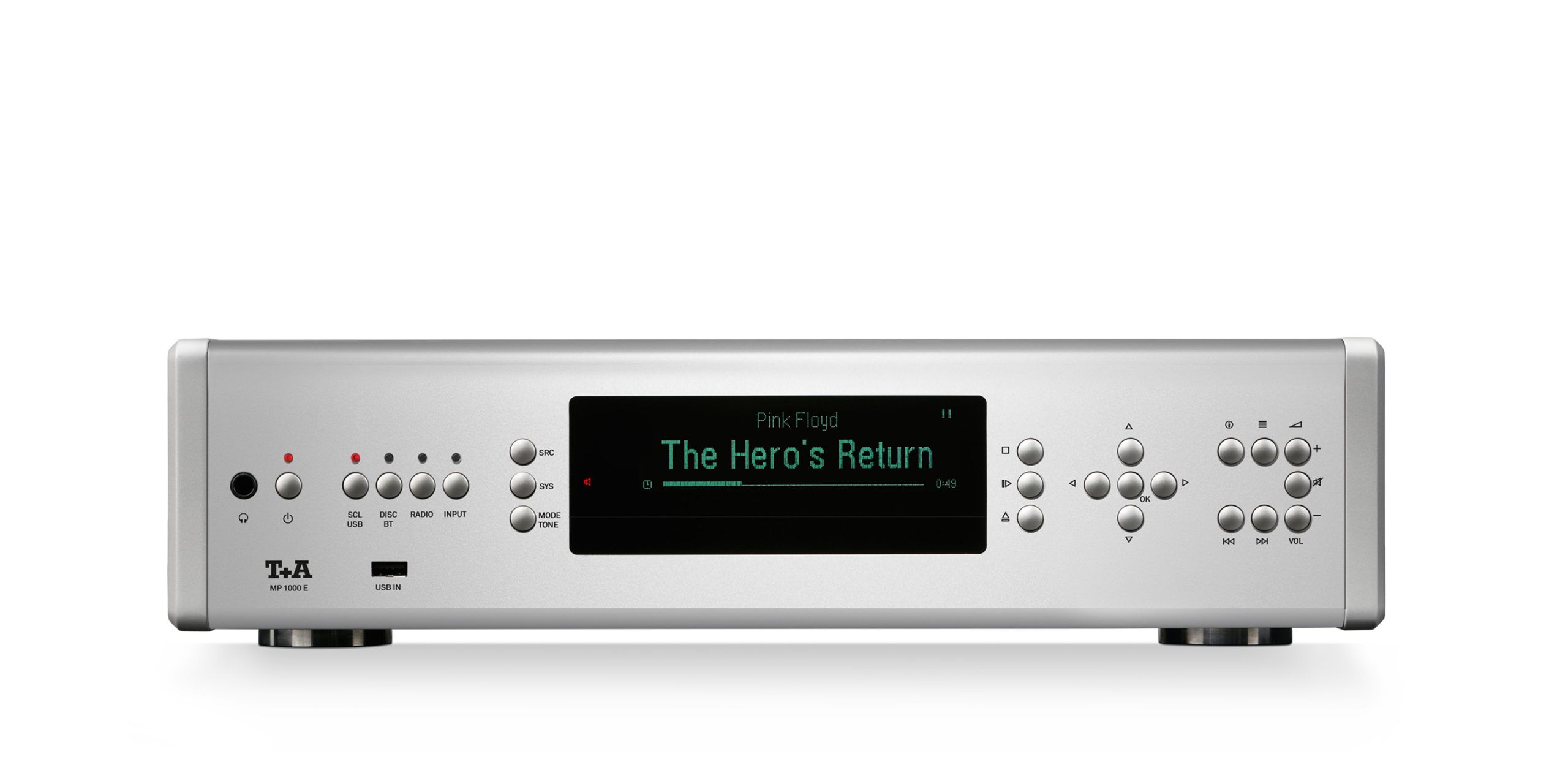

MP 1000 E

## Audio Performance - **Total Harmonic Distortion:** 0.0015% - **Signal / Noise Ratio:** 109 dBA - **Channel Separation:** 106 dB ## Analogue Outputs - **Unbalanced (RCA):** 2.5 Veff / 50 Ohms fixed, with VV-module 0...2.5 Veff variable - **Balanced (XLR):** 5.0 Veff / 50 Ohm fixed, with VV-module 0...5.0 Veff variable - **Headphones:** 6.3 mm plug > 32 Ohm ## Supported Formats - **CD/DA, CD-R, CD-RW, CD-Text** - **Digital Formats:** MP3, AAC, OGG-Vorbis, FLAC, WAV, AIFF, ALAC ## Frequency Response - 2 Hz - 20 kHz / 100 dB ## Standards / Codecs - **Bluetooth:** A2DP (Audio), AVRCP 1.4 (Control) / aptX ®, MP3, SBC ## Data Rates - **PCM:** 32...192 kHz, 16/24 Bit - **MP3:** Up to 320 kBit, constant and variable data rate ## Features - **Gapless Playback:** For MP3 (Lame), WAV, FLAC - **Control App:** T+A MusicNavigator App for iOS and Android ## Networking - **Standards:** UPnP AV - **Services:** Tidal, Deezer, qobuz, Roon Ready (subscription required) - **Interfaces:** - **LAN:** Fast Ethernet 10/100 Base-T - **WLAN:** 802.11 b/g/n ## D/A Converter - **Type:** 32-bit, 384 kHz Sigma Delta, double-mono differential converter, switchable oversampling filters - **Analogue Filter:** Symmetrical, phase linear Besselfilter 3rd order 100 kHz ## Extended Frequency Response - **PCM 384 kHz:** 2 Hz - 100 kHz - **DSD 256:** 2 Hz - 80 kHz ## Inputs - **USB 2.0 (2x):** For USB storage/HDD. Formats: NTFS, FAT 16/32, Ext2 + 3 + 4. - **USB-B:** Class 2 Device Mode, asynchronous, PCM 48...384 kHz, DSD64...256 (depending on Player Software and operating system) - **Coax S/P-DIF (3x):** PCM 32...192 kHz - **Optical S/P-DIF (2x):** PCM 32...96 kHz ## Outputs - **Coax S/P-DIF (1x):** PCM 32...192 kHz (IEC60958) ## Radio - **Internet Radio:** Airable Internet Radio Service (> 11000 Stations worldwide) - **FM, FM-HD:** 87.5 - 108 MHz; sensitivity 1 µV; S/N > 65 dB - **DAB, DAB+:** 168 - 240 MHz (Band III); sensitivity 2.0 µV, S/N > 96 dBA - **RDS/RDBS:** Station name (PS), program type (PTY), radio text (TR), clock ## Accessories - **Included:** IR Remote control SRC 1, WLAN module, Bluetooth antenna, mains cable - **Remote Control:** SRC 1 ## Power - **Mains:** 220-230 V or 110-115 V, 50-60 Hz - **Power Consumption Max.:** 40 Watts - **ECO-Standby:** 0.4 Watt - **Auto Power Off Function:** Yes (after 90 minutes without audio signal) ## Physical Specifications - **Dimensions (H x W x D):** 44 x 11.5 x 35.5 cm - **Weight:** 11 kg ## Optional Accessories - **VVM-pre amp module** - **Power Three HD (Carbon)** - **Power Bar** - **Audio Duo (Carbon)** - **IP-Control** ## Finishes - Silver case + black side panels - Silver case + silver side panels - Black case + black side panels - Black case + silver side panels
