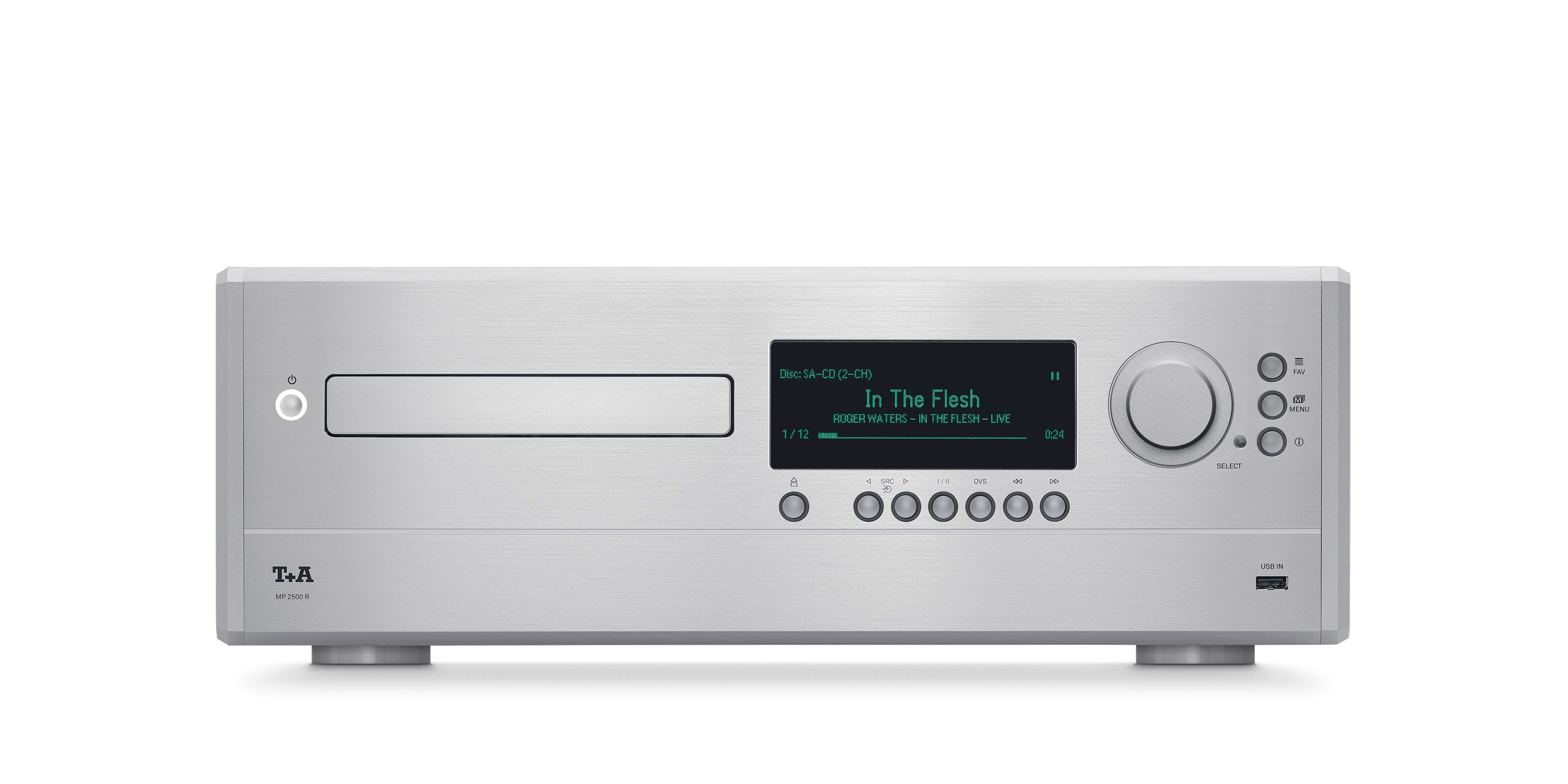

MP 2500 R
by T+A
The MP 2500 R is described as the peak of technological sophistication among the R-Series of multi-source players and DACs, designed specifically to offer uncompromised playback of high-resolution audio files. A standout feature of the MP 2500 R is its inclusion of a state-of-the-art SACD drive sourced from the high-end MP 3100 HV player, replacing the conventional CD mechanism to enhance its audio fidelity further. It shares similar design principles and technical specifications with the MP 2000 R MK II, maintaining consistency within the series while elevating performance.
In terms of digital to analog conversion, the MP 2500 R utilizes a distinctive double differential quadruple converter system for PCM data, and an exclusive T+A true 1-bit DSD converter for DSD files. This high-end hardware setup allows it to handle DSD data natively up to DSD 512, ensuring precise and high-quality audio reproduction. The inbuilt high-resolution streaming board extends functionality by supporting various music services, Internet radio, and HD streaming from network servers, alongside connectivity options like LAN, WLAN, and USB in Master Mode.
Moreover, the digital tuner integrated within the MP 2500 R supports FM, FM-HD, and DAB+, delivering superior sound quality across broadcasting formats. Music transfer from mobile devices is facilitated by a high-quality Bluetooth streaming module, making it versatile in receiving audio from various sources.
Controlled either by the SRC 1 infra-red remote control or the more comprehensive T+A MusicNavigator App, the MP 2500 R offers a user-friendly interface that not only manages all functionalities of the player but also displays detailed information about the streaming content and radio data. This level of control and detail places the MP 2500 R as a premium choice for audio enthusiasts seeking the highest standard of music reproduction in their home audio systems.
Features
General
- Dimensions: 16.5 x 46 x 40 cm
- Weight: 11.3 kg
- Finishes: Silver anodised aluminium (43), black anodised aluminium (42), brushed
- Mains Connection: 100-240 V, 50-60 Hz
- Power Consumption (Max): 40 Watts
- ECO-Standby: 0.3 Watt
- Auto Power Off Function: Yes (after 90 minutes without audio signal)
Mechanism
- Drive Type: High precision linear tracking
- Double-Laser System:
- SACD: 650 nm
- CD: 785 nm
Supported Formats
- Audio CD: SACD Stereo, CD/DA, CD-R, CD-RW, SACD/CD Text
- File Types: MP3, WMA, AAC, OGG Vorbis, FLAC, WAV, AIFF, ALAC
- Data Rates:
- PCM: 32...192 kHz, 16/24 Bit
- MP3: Up to 320 kBit, constant and variable Data rate
Features
- Gapless Playback: Supports MP3 (Lame), WAV, FLAC
- Applications: T+A MusicNavigator App for iOS und Android
Network and Connectivity
- Standards: UPnP AV
- Interfaces:
- LAN: Fast Ethernet 10/100 Base-T
- WLAN: 802.11 b/g/n
- Bluetooth: A2DP (Audio), AVRCP 1.4 (Control) / aptX®, MP3, SBC
- USB Ports:
- Device Mode: 1x USB Device-Mode asynchronous
- Master Mode: 2 x USB Master-Mode for USB-storage devices
Streaming Services
- Supported Services: Tidal, Deezer, qobuz, Roon Ready (Subscription required)
Digital Inputs
- S/P-DIF: 1x Coax, 2x BNC, 2x TOS-Link
Audio Output
- Analogue Outputs:
- High Level (RCA): 2.5 Veff / 50 Ohms
- Balanced (XLR): 5.0 Veff / 50 Ohms
- Digital Outputs: 1 x coax, IEC 60958 S/P-DIF (LPCM)
D/A Conversion
- PCM: Double differential quadruple converter with four D/A converters per channel, 32-bit sigma-delta, 352.8kSps/384kSps
- DSD: T+A-True-1Bit DSD D/A-converter up to DSD 512 (22 MHz)
Radio
- Reception Standards: FM, FM-HD, DAB, DAB+
- FM Frequency Range: 87.5 - 108 MHz
- DAB Frequency Range: 168 -240 MHz (Band III)
- Sensitivity: >1 μV
Audio Performance
- Frequency Response:
- PCM/DSD Performance
- 44.1 kSps: 2 Hz – 20 kHz
- 48 kSps / DSD 64: 2 Hz – 22 kHz / 2 Hz – 44 kHz
- 96 kSps / DSD 128: 2 Hz – 40 kHz / 2 Hz – 60 kHz
- 192 kSps / DSD 256: 2 Hz – 80 kHz / 2 Hz – 80 kHz
- 384 kSps / DSD 512: 2 Hz – 100 kHz / 2 Hz – 100 kHz
- PCM/DSD Performance
- Total Harmonic Distortion: < 0.001 %
- Signal / Noise Ratio: 116 dB
- Channel Separation: 110 dB
Optional Accessories
- Power Three HD (Carbon) | Power Bar | Audio Quad (Carbon) | Audio Triax (Carbon) | IP-Steuerung
