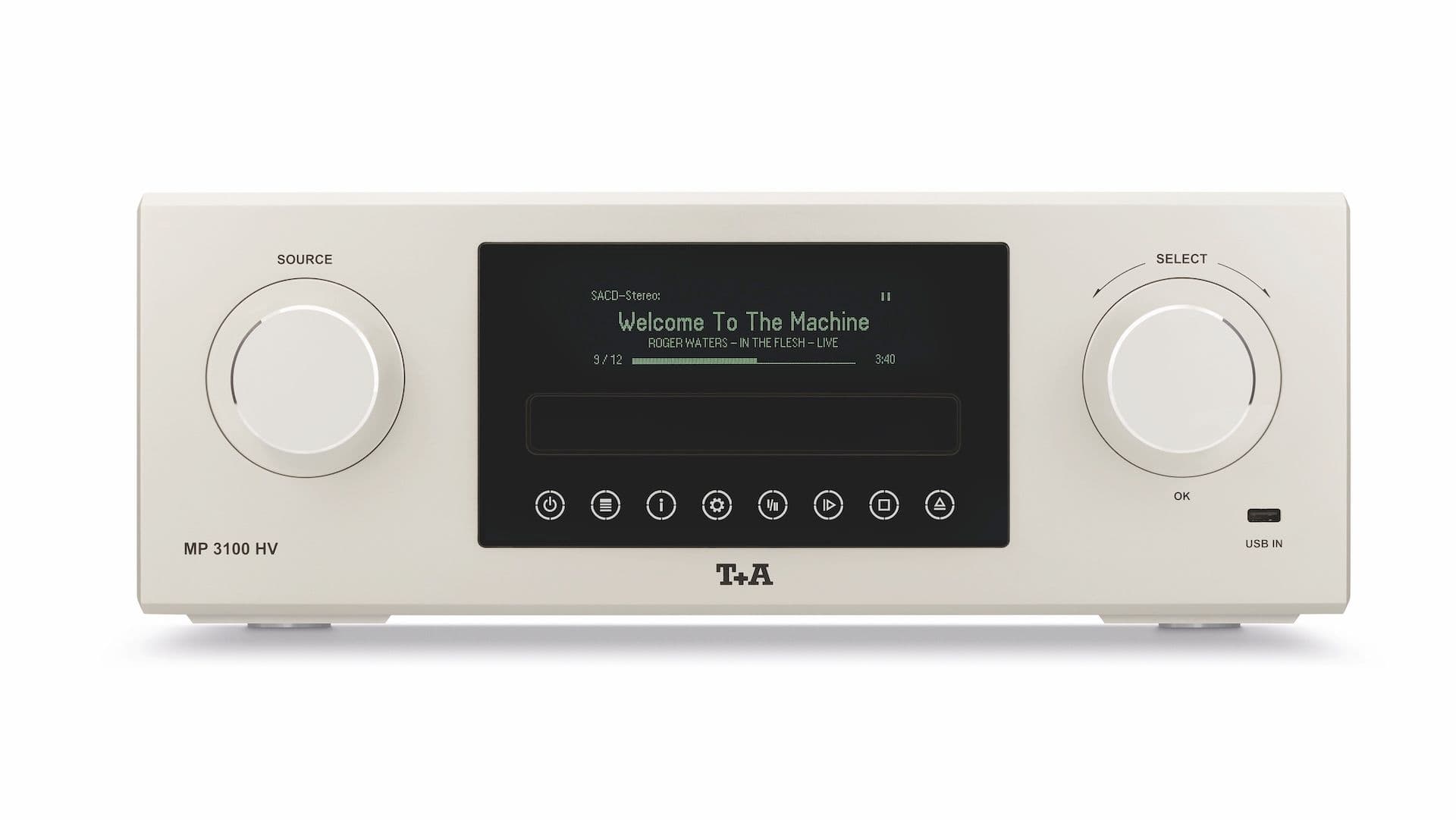

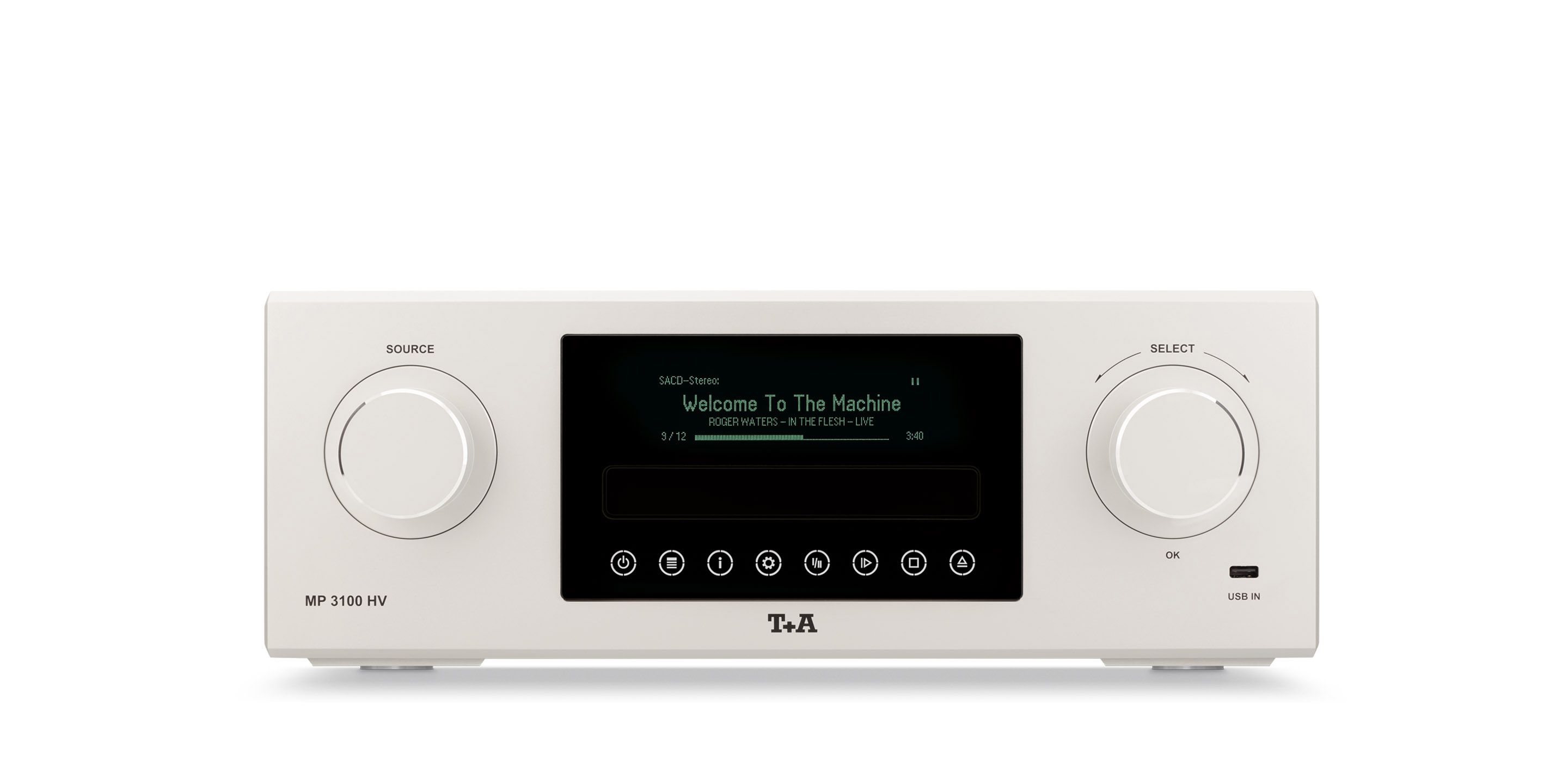

MP 3100 HV

## Disc Playback - **SACD Drive Unit**: High precision linear tracking drive - **Double-Laser System**: SACD: 650 nm, CD: 785 nm - **Supported Formats**: SACD Stereo, CD, CD-R, CD-RW, CD Text ## Audio Performance - **Frequency Range and Dynamics**: - **CD**: 2 Hz – 20 kHz / 100 dB - **SACD**: 2 Hz – 44 kHz / 110 dB ## Digital Audio Formats - **Supported Formats/Standards**: MP3, WMA, AAC, OGG Vorbis, FLAC, WAV, AIFF, ALAC / UPnP AV - **Data Rates**: - **PCM**: 32...192 kHz, 16/24 Bit - **MP3**: Up to 320 kBit constant and variable data rate ## Music Services - **Supported Services**: Tidal, Qobuz, Deezer, Roon Ready (Subscription required) - **Features**: - Gapless Playback for MP3 (Lame), WAV, FLAC - T+A MusicNavigator App for iOS and Android ## Network Interfaces - **LAN**: Fast Ethernet 10/100 Base-T - **WLAN**: 802.11 b/g/n ## Radio - **Internet Radio**: Airable Internet Radio Service (> 11000 Stations) - **FM, FM-HD**: - Frequency Range: 87.5 - 108 MHz - Sensitivity: 1 µV - Signal-to-Noise Ratio: > 65 dBA - **DAB, DAB+**: - Frequency Range: 168 - 240 MHz (Band III) - Sensitivity: 2.0 µV - Signal-to-Noise Ratio: > 96 dBA - **Features**: RDS/RDBS, station name (PS), programme type (PTY), radiotext (RT), time ## Bluetooth - **Supported Codes**: - A2DP (Audio) - AVRCP 1.4 (Control) - aptX®, MP3, SBC ## Outputs - **Analog Co-axial (RCA) | Balanced (XLR)**: 2.5 Veff / 50 Ohm | 5.0 Veff / 50 Ohm - **Digital Output**: 1 x coax, IEC 60958 S/P-DIF (LPCM) ## Digital Inputs - **AES-EBU**: 1 x 192 kSps / 24 bit - **S/P-DIF**: 1 x standard coax, 2 high quality BNC 192 kSps / 24 bit, 2 optical TOS-Link 96 kSps / 24 bit - **USB**: - Device Mode up to 384 kSps (PCM) and DSD512*, supports asynchronous data transfer - 2 x USB Master Mode for USB mass storage (Stick or HDD) - *DSD256 and DSD512 only with a Windows PC with appropriate driver installed ## Converters - **PCM**: Double-Differential-Quadruple-Converter with four 32-Bit Sigma Delta D/A converters per channel, 352.4 / 384 kSps conversion rate - **DSD**: T+A True-1Bit DSD D/A-Converter native bitstream ## Upsampling (PCM) - T+A Digital Signal Processor - synchronous upsampling with 4 selectable oversampling algorithms: - FIR short, FIR long, Bezier/IIR, Bezier ## Analogue Filter - Phase-linear Bessel filter 3rd Order with 60 or 120 kHz cut off frequency ## Frequency Response - **PCM 44.1 kSps**: 2 Hz - 20 kHz - **PCM 48 kSps**: 2 Hz - 22 kHz / **DSD 64**: 2 Hz - 44 kHz - **PCM 96 kSps**: 2 Hz - 40 kHz / **DSD 128**: 2 Hz - 60 kHz - **PCM 192 kSps**: 2 Hz - 80 kHz / **DSD 256**: 2 Hz - 80 kHz - **PCM 384 kSps**: 2 Hz - 100 kHz / **DSD 512**: 2 Hz - 100 kHz ## Additional Specifications - **Total Harmonic Distortion**: < 0.001% - **Signal / Noise Ratio**: > 116 dB - **Channel Separation**: > 110 dB - **Power Supply**: - 2 x 110-120 V or 220-240 V, 50-60 Hz - 2 x 40 W - **Standby Power Consumption**: < 0.5 W ## Dimensions and Weight - **Dimensions (H x W x D)**: 17 x 46 x 46 cm - **Weight**: 26 kg ## Remote Control - Remote Control: F 3100, IR radio remote control T+A MusicNavigator App ## Accessories - **Included**: WLAN aerial, BNC / RCA adapter - **Optional**: - Power Three HD (Carbon) - Power Bar - Audio Quad (Carbon) - HV-Individual finish (Individual colours on request) ## Finishes - **Case**: Silver lacquer 47 or titanium lacquer 64 - **Heat Sink**: Black 42
