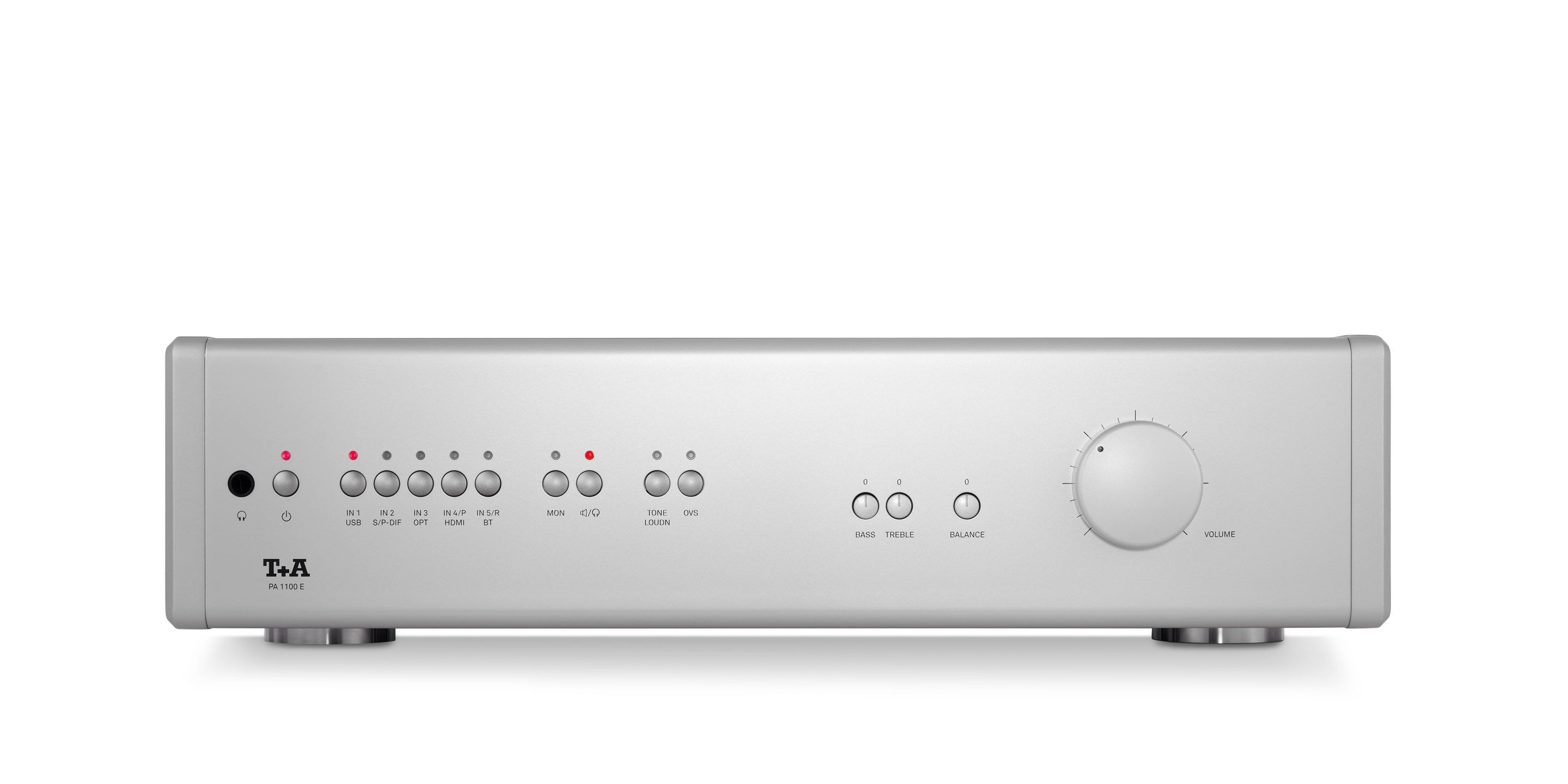

PA 1100 E

#### Power Output - Nominal output per channel (4 Ohms / 8 Ohms): 2 x 250 Watts / 2 x 140 Watts - Peak output per channel (4 Ohms / 8 Ohms): 2 x 400 Watts / 2 x 220 Watts #### Audio Performance - Frequency response (-3dB): 1 Hz - 60 kHz - Total harmonic distortion: 0.0025% - Total harmonic distortion / Intermodulation: < 0.004 % / < 0.004 % - Signal / noise ratio: 108 dBA - Channel separation: > 82 dB #### Inputs - RCA: 5 x RCA, 250 mVeff ... 3 Veff / 20 kOhms - Balanced (XLR): 1 x balanced (XLR), 500 mVeff ... 6 Veff / 5 kOhms #### Outputs - RCA: 2 x RCA, PRE OUT, REC OUT 2.5 Veff / 50 Ohms - Headphones: 6.3 mm plug > 32 Ohms #### D/A Converter - PCM: 32-bit Sigma Delta, 384 kSps - DSD: up to DSD 256 (11.2 MHz) - Switchable oversampling algorithms: Standard-FIR and T+A Bezier #### Digital Inputs - SP/DIF coax.: 2 x, PCM 32 ... 192 kSps - TOSLINK optical: 2 x, PCM 32 ... 192 kSps - USB-B: 1 x, PCM 32 ... 384 kSps, DSD 64 ... DSD 256 (MAC-OS up to DSD 128) - HDMI: 2 x, 1 x HDMI (ARC) (optional accessories) #### Bluetooth - Supported formats: APT-X, MP3, AAC, SBC, AVRCP #### Optional Accessories - Plug-in phono module MM: 1 - 5 mV, 16 capacitance values - Plug-in phono module MC: 60 - 1000 µV, 16 impedance values - Plug-in HDMI Module: available #### Control and Power - Remote control: FM 11 with E 2000 - Mains: 220-240 V or 110-120 V, 50-60 Hz, 600 W - Standby power consumption: < 0.5 Watts #### Dimensions and Weight - Dimensions (H x W x D): 11.5 x 44 x 38 cm - Weight: 14 kg #### Finishes - Silver case + black side panels - Silver case + silver side panels - Black case + black side panels #### Additional Optional Accessories - PHE-MM or MC - HDMI module - Power Three HD (Carbon) - Power Bar - Audio Duo (Carbon) - Speaker Hex (Carbon)
