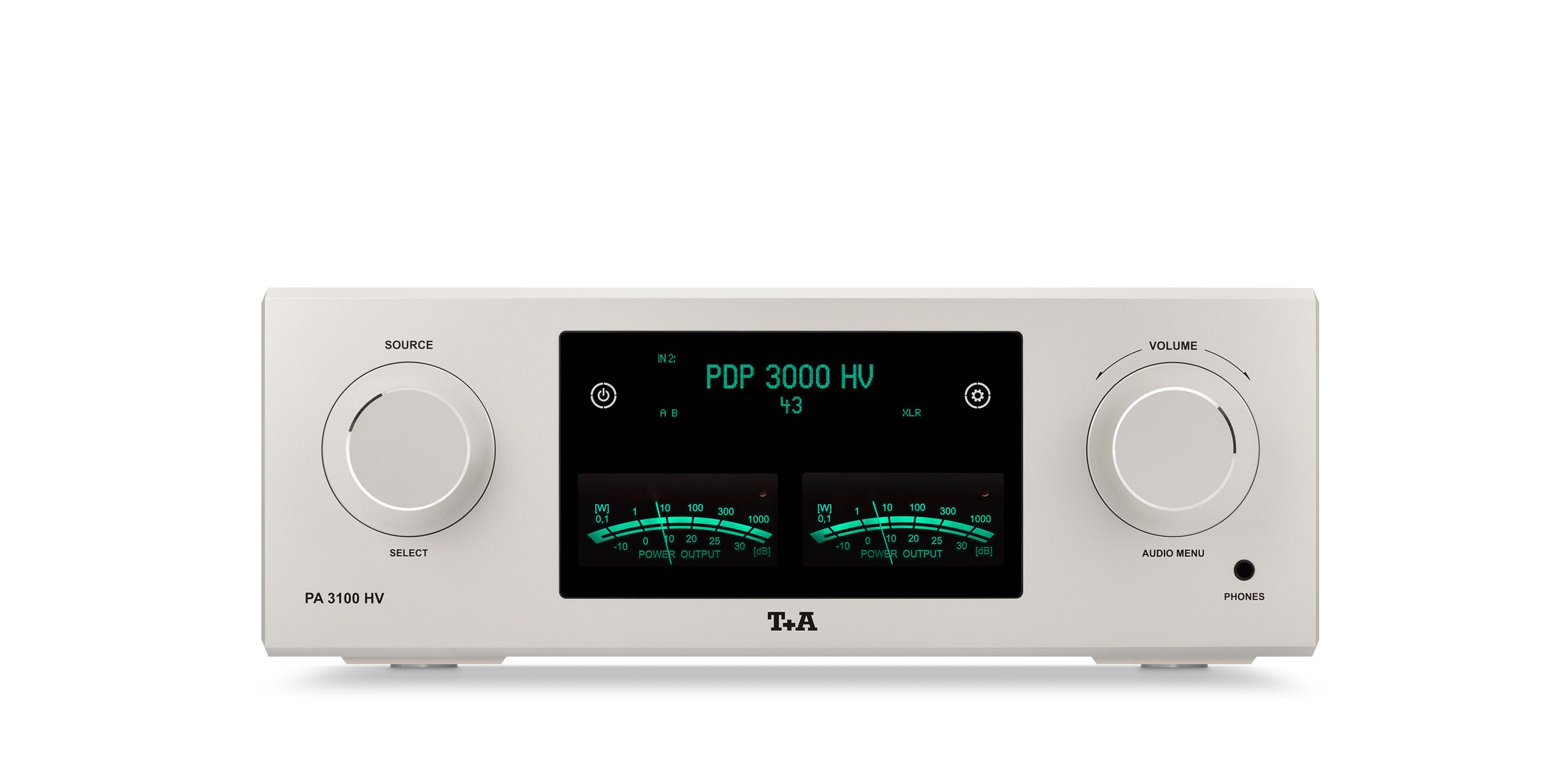

PA 3100 HV

## Frequency Response - + 0 / – 3 dB: 0.5 Hz – 300 kHz ## Signal / Noise Ratio - Signal / Noise Ratio: 105 / 110 dB ## Total Harmonic Distortion - Total Harmonic Distortion: < 0.001% ## Intermodulation - Intermodulation: < 0.001% ## Channel Separation - Channel Separation: > 90 dB ## Nominal Input Sensitivity - High Level (RCA): 7 x 250 mVeff ... 6 Veff / 20 kOhms - Balanced (XLR): 4 x 500 mVeff ... 12 Veff / 5 kOhms ## Headphones - Headphones: 50 Ohms ## Recorder - 1 x Recorder: 250 mVeff / 100 Ohms ## Pre Out - PRE out RCA: nom 1 Veff, max 9.5 Veff / 50 Ohms - PRE out XLR: nom 1.45 Veff, max 19.6 Veff / 50 Ohms ## RMS Output per Channel - Into 8 Ohms: 300 Watts - Into 4 Ohms: 500 Watts ## Peak Output - Into 8 Ohms: 380 Watts - Into 4 Ohms: 700 Watts ## Power Bandwidth - Power Bandwidth: 1 Hz – 150 kHz ## Frequency Response (Alternative) - + 0 / – 3 dB: 0.5 Hz – 180 kHz ## Slew Rate - Slew Rate: 60 V/µs ## Damping Factor - Damping Factor: > 65 ## Signal / Noise Ratio (Alternative) - Signal / Noise Ratio: > 115 dB ## Total Harmonic Distortion (Alternative) - Total Harmonic Distortion: < 0.03% ## Reservoir Capacity - Reservoir Capacity: 120000 µF ## Mains - Mains: 110 V/60 Hz or 220/240 V/50 Hz ## Standby - Standby: < 0.5 W ## Remote Control - Remote Control: F 3001 ## Features - Trigger input +5 ... 20V for external switching-on - Input 4 can be configured in surround mode (Surround pass-through) - Connectivity for additional PS 3000 HV - LAN connector for home-automation systems ## Optional Accessories - PS 3000 HV Power Supply - PH HV MM oder MC phono module - APM signal processor module - Power Three HD (Carbon) - Power Bar - Audio Quad (Carbon) - Speaker Hex (Carbon) - HV-Individual finish (Individual colours on request) - IP control ## Dimensions - Dimensions (H x W x D): 17 x 46 x 46 cm ## Weight - Weight: 38 kg ## Finishes - Case: silver lacquer 47 or titanium lacquer 64 - Heat sink: black 42
