About

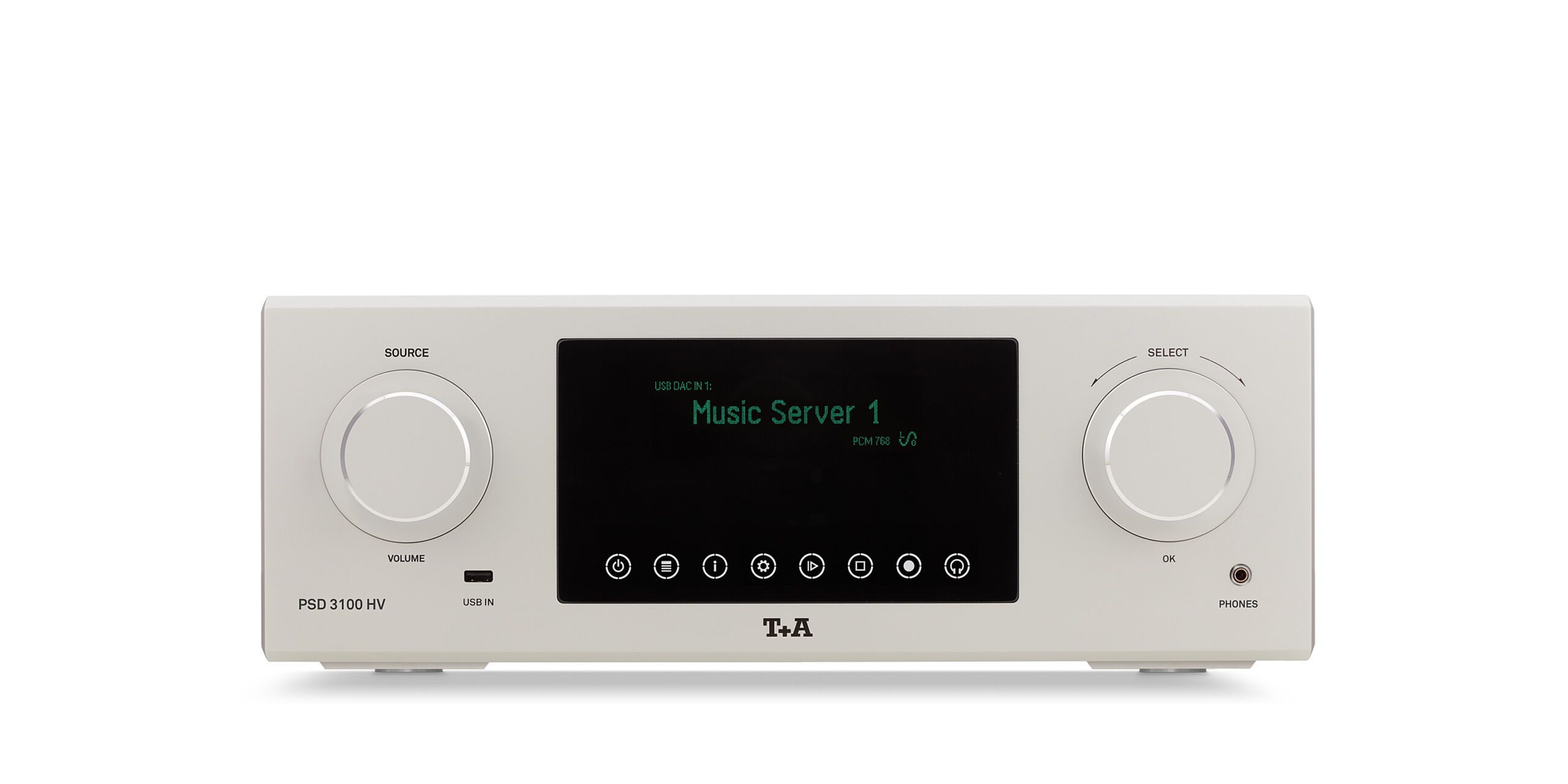

The PSD 3100 HV was developed with the requirement to combine the performance of our finest pre-amplifiers and converters with the convenience of use of a multi-source player. With an array of professional digital inputs, FM, FM-HD, DAB+ radio, Bluetooth and Connect services, and streaming for local...
Related Content
No related content yet
Features
## Frequency Response
- +0 /-3dB: 0.5 Hz - 300 kHz
## Signal-to-Noise Ratio
- 108 / 112 dB
## THD | Intermodulation | Channel Separation
- THD: < 0.001%
- Intermodulation: < 0.001%
- Channel Separation: > 108 dB
## Nominal Input Sensitivity (High level)
- RCA: 250 mVeff ... 9 Veff / 20 kOhm
- 500 mVeff ...18 Veff / 40 kOhm
## Analogue Output
- RCA: nom 1 Veff, max 9.5 Veff / 20 Ohm
- XLR: nom 1.45 Veff, max 19.6 Veff / 40 Ohm
## Headphone Output
- 4.4 mm Pentaconn (6 Ohms)

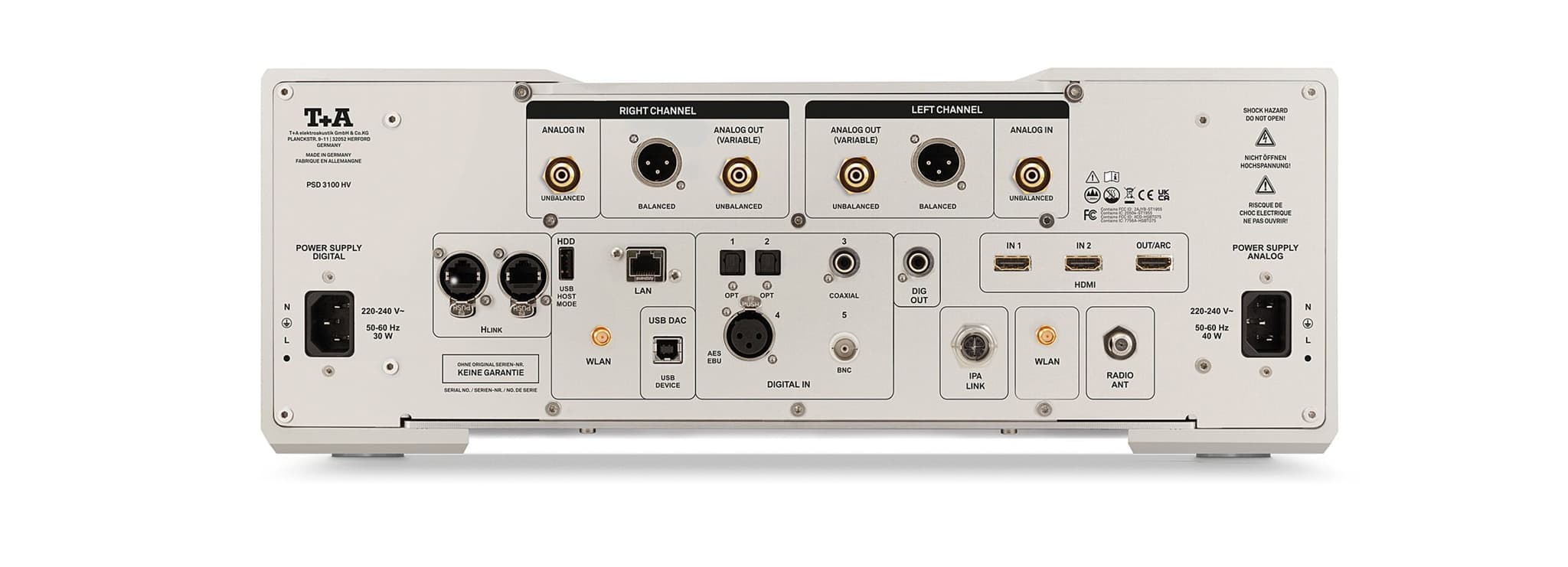

## Digital Inputs
- 1 x AES-EBU: 32...192 kHz / 16-24 Bit
- 4 x S/P-DIF:
- 1 x Standard Coax
- 1 x high quality BNC: 32...192 kHz / 16-24 Bit
- 2 x optical TOS-Link: 32...192 kHz / 16-24 Bit
- 1 x USB DAC: Device-Mode with max. 768 kSps (PCM) und DSD 512, supports asynchronous data transfer.
- 2 x USB Master-Mode for USB-Mass storage (Stick or HDD)
- 2 x HDMI IN, 1 x HDMI OUT with ARC
- 1 x IPA (LVDS)
## PCM Conversion
- Double-Differential-Quadruple-Converter with four 32-Bit Sigma-Delta D/A-Converter per channel
- 705.6 / 768 kSps conversion rate
## DSD Conversion
- T+A-True-1Bit DSD D/A-Converter, up to DSD 512 (24.5 MHz), native bitstream
## Upsampling (PCM)
- T+A-Signalprocessor – synchronous upsampling with 4 selectable oversampling algorithms:
- FIR short
- FIR long
- Bezier/IIR
- Bezier
## Analogue Filter
- Phase-linear Bessel filter 3rd order, switchable with 60 or 120 kHz cut off frequency
## Frequency Response by Sampling Rate
- PCM 44.1 kSps: 2 Hz - 20 kHz
- PCM 48 kSps: 2 Hz - 22 kHz / DSD 64: 2 Hz - 44 kHz
- PCM 96 kSps: 2 Hz - 40 kHz / DSD 128: 2 Hz - 60 kHz
- PCM 192 kSps: 2 Hz - 80 kHz / DSD 256: 2 Hz - 80 kHz
- PCM 384 kSps: 2 Hz - 100 kHz / DSD 512: 2 Hz - 100 kHz
- PCM 768 kSps: 2 Hz - 120 kHz
## Performance Metrics
- THD: < 0.001%
- S/N Ratio: > 117 dB
- Channel Separation: > 110 dB
## Streaming Client
- Streaming client module 3rd generation with Quad Core processor
## Internet Radio
- Airable Internet Radio Service (> 11,000 stations worldwide)
## Radio
- FM, FM-HD: 87.5 - 108 MHz; sensitivity 1 µV; S/N > 65 dBA
- DAB, DAB+: 168 -240 MHz (Band III); sensitivity 2.0 µV, S/N > 96 dBA
- Features: RDS/RDBS, Station name (PS), Program type (PTY), Radiotext (RT)
## Bluetooth
- Standard: A2DP (Audio), AVRCP 1.4 (Control)
- Codec: aptX® HD, SBC, AAC
## Power
- Mains: 2 x 110-120 V or 220-240 V, 50-60 Hz
- Operation: 30 W digital / 40 W analogue
- Standby: < 0.5 W
## Dimensions / Weight
- W x H x D: 17 x 46 x 46 cm
- Weight: 26 kg
## Accessories
- 2x power cords
- Remote control F 3100
- BNC adapter
## Finishes
- Silver lacquer 47
- Titanium lacquer 64
