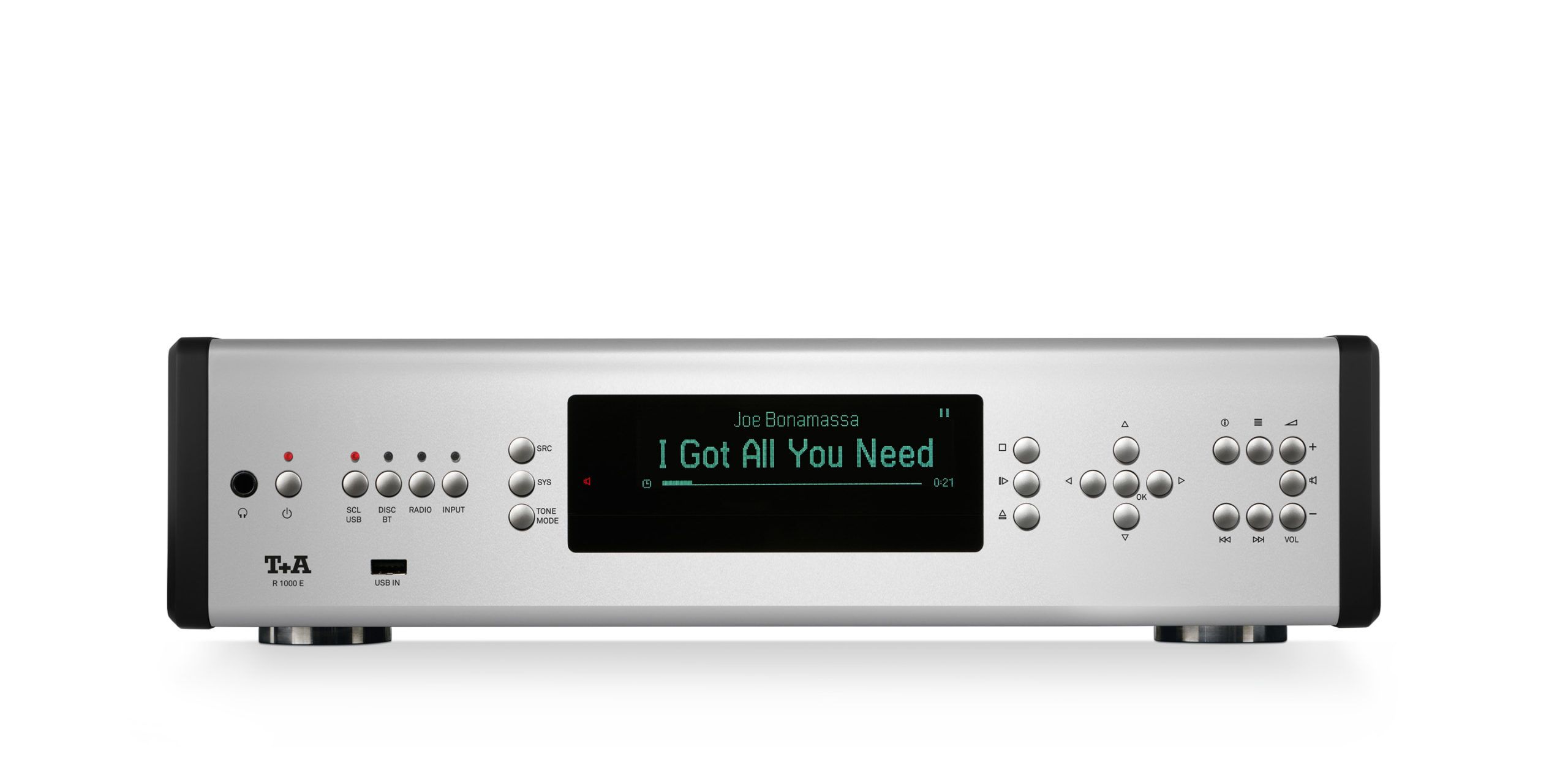

R 1000 E

### General - **Nominal Output Power per Channel** - **4 Ohms:** 2 x 180 Watts - **8 Ohms:** 2 x 115 Watts - **Peak Output Power per Channel** - **4 Ohm:** 2 x 300 Watts - **8 Ohm:** 2 x 180 Watts - **Frequency Response** - **-3dB:** 1 Hz - 60 kHz - **General:** 1 Hz - 250 kHz - **Total Harmonic Distortion** - **General:** < 0.004% - **Specific:** 0.0022% - **Intermodulation:** < 0.004% - **Signal to Noise Ratio:** 106 dBA - **Channel Separation:** > 90 dB ### Connectivity - **Analog Inputs** - **Unbalanced (RCA):** - PRE-, LINE-, SUB OUT 2.5 Veff / 50 Ohms - Headphones 6.3 mm plug > 32 Ohms - 250 mVeff ... 3 Veff / 20 kOhm - **Digital Inputs** - **Coaxial (S/P-DIF):** PCM 32...192 kHz - **Optical (S/P-DIF):** PCM 32...96 kHz - **USB 2.0:** Supports USB storage/HDD - **USB-B (Class 2 Device Mode):** Asynchronous, PCM 32...96 kHz, DSD64 - **Outputs** - **Coaxial (S/P-DIF):** PCM 32...192 kHz - **Formats Supported** - **File Formats:** MP3, AAC, OGG-Vorbis, FLAC, WAV, AIFF, ALAC - **Audio Standards:** A2DP, AVRCP 1.4 / aptX, SBC - **Interfaces** - **Ethernet:** LAN 10/100 Base-T - **Wireless:** WLAN 802.11 b/g/n ### Radio and Streaming - **Frequency Response (CD Playback):** 2 Hz - 20 kHz / 100 dB - **Internet Radio:** Airable Internet Radio Service (> 11000 Stations worldwide) - **FM Radio** - **Range:** 87.5 - 108 MHz - **Sensitivity:** 1 µV - **S/N Ratio:** > 65 dB - **DAB/DAB+** - **Frequency Range:** 168 -240 MHz (Band III) - **Sensitivity:** 2.0 µV - **S/N Ratio:** > 96 dBA - **Supported Services:** Tidal, Deezer, Qobuz, Roon Ready (subscription required) ### Audio Processing - **D/A Converter:** 32-bit, 384 kHz Sigma Delta, double-mono differential converter - **Analogue Filter:** Symmetrical, phase linear Besselfilter 3rd order 100 kHz ### Power - **Max Consumption:** 300 Watts - **Idle Consumption:** 22 Watts - **ECO-Standby:** 0.3 Watt - **Mains:** 220-230 V or 110-115 V, 50-60 Hz - **Auto Power Off:** Yes (after 90 minutes without audio signal) ### Physical - **Dimensions:** 11.5 x 44 x 37 cm (H x W x D) - **Weight:** 13 kg - **Available Finishes:** - Silver case + black side panels - Silver case + silver side panels - Black case + black side panels - Black case + silver side panels ### Accessories - **Included:** IR Remote Control SRC 1, WLAN Module, Bluetooth Aerial, Power Cord - **Optional:** PHE MM/MC Phono Module, Power Three HD (Carbon), Power Bar, Audio Duo (Carbon), Speaker Hex (Carbon) IP-Control
