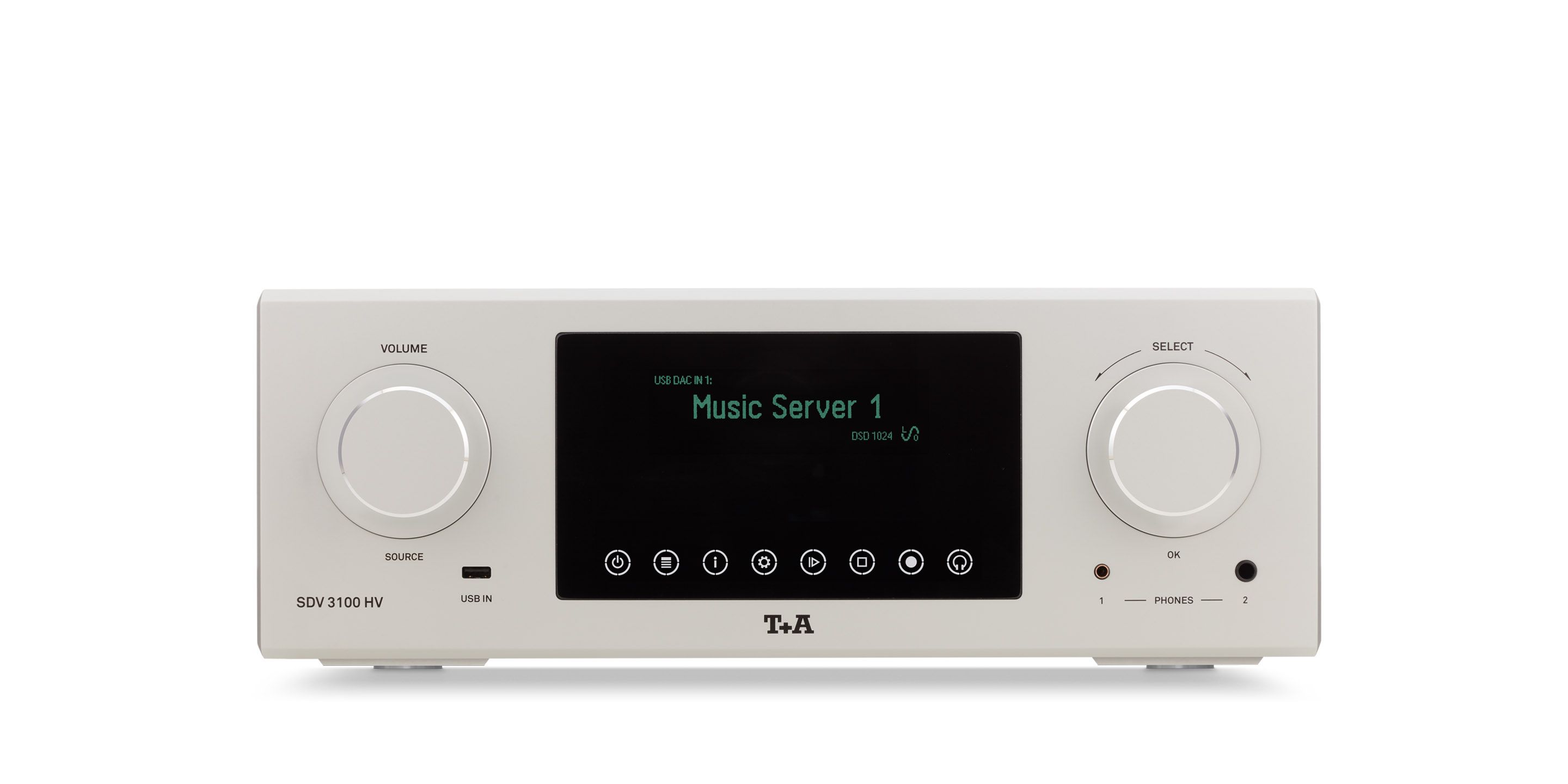

The SDV 3100 HV is a state-of-the-art Streaming DAC Preamp that boasts a digital/analogue conversion system more advanced and intricate than its predecessors. This innovation has enabled the achievement of significantly higher levels of resolution, showcasing 32-bit / 768 kHz for PCM audio and DSD 1...
Related Content
No related content yet
Features
## Frequency Response
- +0 /-3dB: 0.5 Hz - 300 kHz
## Signal-to-Noise Ratio
- 108 / 112 dB
## Distortion
- THD: < 0.001%
- Intermodulation: < 0.001%
- Channel Separation: > 108 dB
## Input Sensitivity
- High level (RCA): 250 mVeff ... 9 Veff / 10 kOhm
- Balanced (XLR): 500 mVeff ...18 Veff / 20 kOhm
## Analogue Outputs
- RCA: nom 1 Veff, max 9.5 Veff / 50 Ohm
- XLR: nom 1.45 Veff, max 19.6 Veff / 50 Ohm
## Headphone Output
- 6.3 mm Klinke (6 Ohms)
- 4.4 mm Pentaconn (6 Ohms)
## Digital Outputs
- 1x coax, IEC 60958 S/P-DIF (LPCM)
## Digital Inputs
- 1 x AES-EBU 32...192 kHz / 16-24 Bit
- 6 x S/P-DIF:
- 2 x Standard Coax
- 2 x high quality BNC 32...192 kHz / 16-24 Bit
- 2 x optical TOS-Link 32...192 kHz / 16-24 Bit
- 2 x USB DAC:
- Device-Mode with max. 768 kSps (PCM) and DSD 1024*
- Supports asynchronous data transfer
* DSD512 and DSD 1024 with Windows PC with appropriate driver installed or Linux PC with 4.4 Kernel or higher only.
- 2 x USB Master-Mode for USB-Mass storage (Stick or HDD)
- 2 x HDMI IN, 1 x HDMI OUT with ARC
- 1 x IPA (LVDS)
## Network Connection
- LAN: Fast Ethernet 10/100/1000 Base-T
- WLAN: 802.11 b/g/n
## Digital-to-Analog Conversion
- PCM: Double-Differential-Quadruple-Converter with four 32-Bit Sigma-Delta D/A-Converter per channel, 705.6 / 768 kSps conversion rate
- DSD: T+A-True-1Bit DSD D/A-Converter, up to DSD 1024 (49.2 MHz), native bitstream
## Upsampling (PCM)
- T+A-Signalprocessor – synchronous upsampling with 4 selectable oversampling algorithms:
- FIR short
- FIR long
- Bezier/IIR
- Bezier
## Analogue Filter
- Phase-linear Bessel filter 3rd order, switchable with 60 or 120 kHz cut off frequency
## Frequency Response
- PCM 44.1 kSps: 2 Hz - 20 kHz
- PCM 48 kSps: 2 Hz - 22 kHz / DSD 64: 2 Hz - 44 kHz
- PCM 96 kSps: 2 Hz - 40 kHz / DSD 128: 2 Hz - 60 kHz
- PCM 192 kSps: 2 Hz - 80 kHz / DSD 256: 2 Hz - 80 kHz
- PCM 384 kSps: 2 Hz - 100 kHz / DSD 512: 2 Hz - 100 kHz
- PCM 768 kSps: 2 Hz - 120 kHz / DSD 1024: 2 Hz - 120 kHz
## THD
- < 0.001%
## S/N Ratio
- > 117 dB
## Channel Separation
- > 110 dB
## Formats / Standards
- MP3, WMA, AAC, OGG Vorbis, FLAC, WAV, AIFF, ALAC
- UPnP AV, T+A Control
## Data Rates
- PCM 32...192 kHz, 16/24 Bit; MP3 up to 320 kBit, variable and constant bit rate
## Music Services
- Tidal, Deezer, qobuz (Subscription required)
## Features
- Gapless Playback for MP3 (Lame), WAV, FLAC
- T+A MusicNavigator App for iOS and Android
## Internet Radio
- Airable Internet Radio Service (> 11000 Stations worldwide)
## FM, FM-HD
- 87.5 - 108 MHz; sensitivity 1 µV; S/N > 65 dBA
## DAB, DAB+
- 168 -240 MHz (Band III); sensitivity 2.0 µV, S/N > 96 dBA
## Radio Features
- RDS/RDBS, Station name (PS), Program type (PTY), Radiotext (RT)
## Bluetooth
- Standard / Codec: A2DP (Audio), AVRCP 1.4 (Control)
- aptX®, MP3, SBC
## Power Supply
- Mains: 2 x 110-120 V or 220-240 V, 50-60 Hz
- Operation: 2 x 40 W
- Standby: < 0.5 W
## Dimensions
- Width x Height x Depth: 17 x 46 x 46 cm
- Weight: 26 kg
## Accessories
- 2x power cord
- Remote control F 3100
- BNC adapter
## Optional Accessories
- Power Three HD (Carbon)
- Power Bar
- Audio Quad (Carbon)
- Audio Triax (Carbon)
- HV-Individual finish (Individual colors on request)
## Finishes
- Silver lacquer 47
- Titanium lacquer 64
