Unitra
WSH-805
About

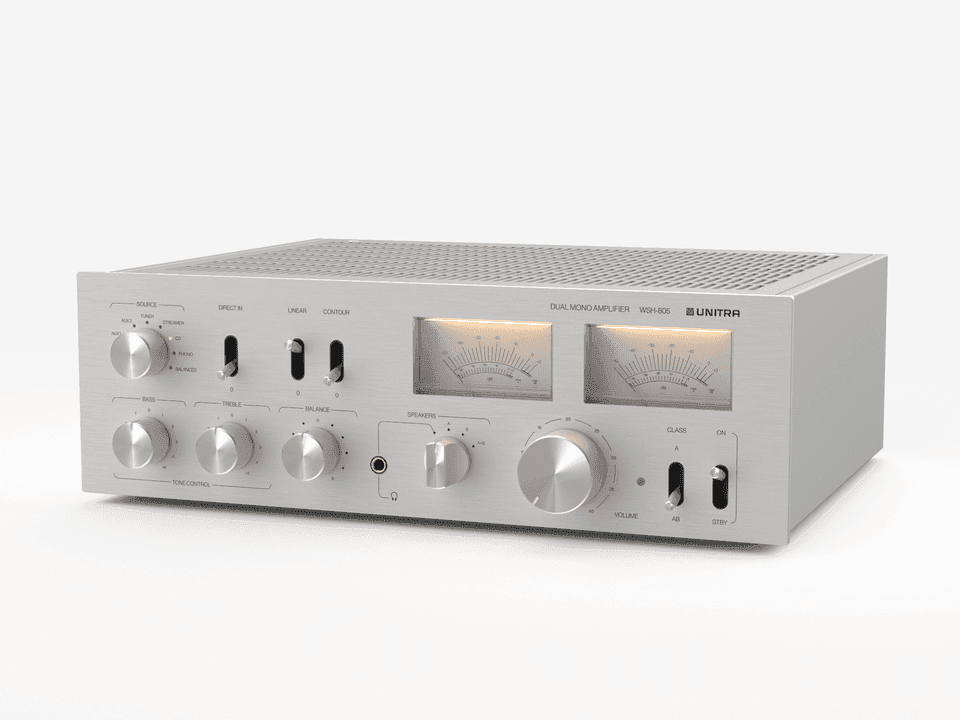

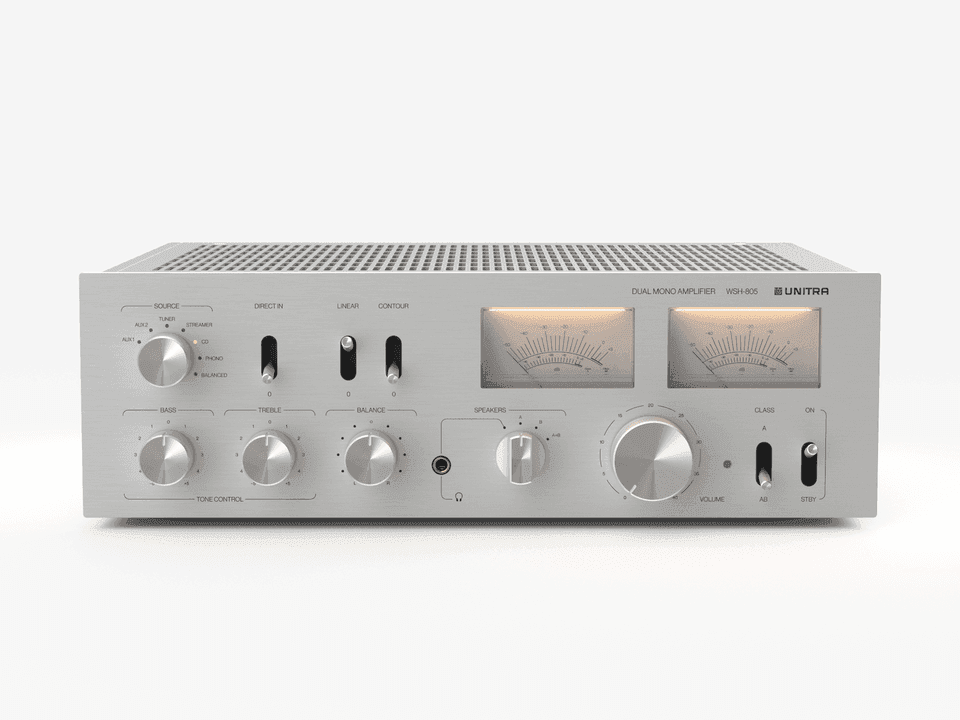

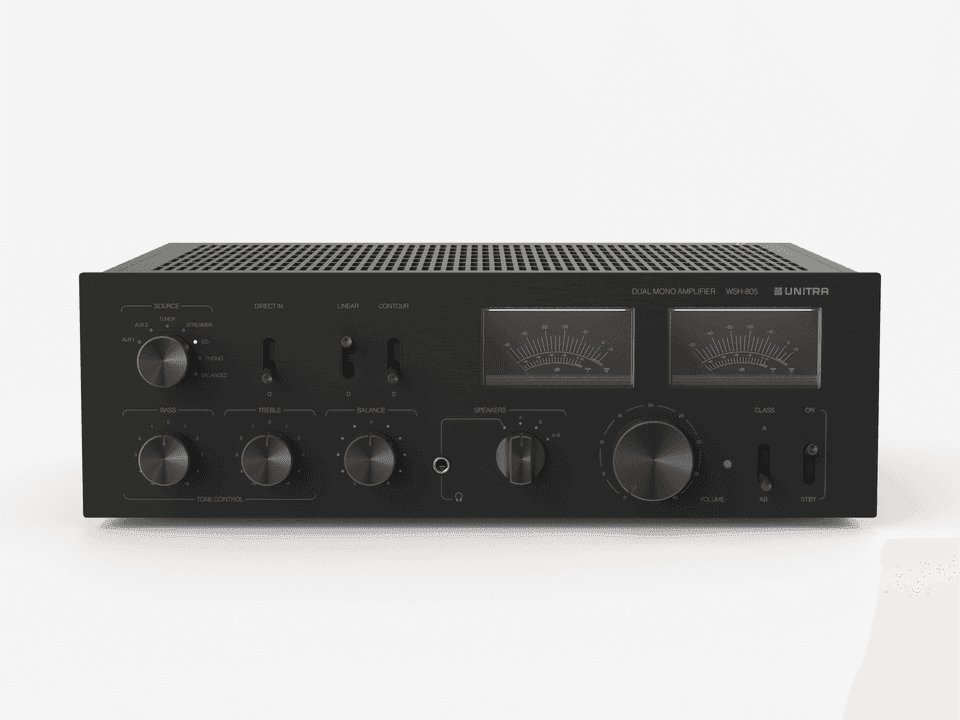

The WSH-805 is a high-fidelity integrated stereo amplifier that takes its design inspiration from the legendary Unitra WSH-205, an iconic amplifier model mostly exported for its superior quality and performance. Embodying the aesthetic and technological ethos of the 1970s golden stereo era, the WSH-...
Related Content
No related content yet
Features
Power Amplification Specifications
- RMS Output Power
- Class AB, 8 Ω: 80 W
- Class AB, 4 Ω: 125 W
- Class A, 8 Ω: 8 W
- Class A, 4 Ω: 16 W
Inputs
- RCA Inputs:
- Aux 1, Aux 2, Tuner, CD, Streamer, Phono + GND (MM / MC), Direct In
- XLR:
- Balanced
Outputs
- Speaker Terminals:
- A / B / AB
- Other Outputs:
- 6.3 mm Headphone Output
- Pre Out
Audio Quality
- Total Harmonic Distortion (THD): < 0.0008% (40 W)
- Frequency Response: 6.3 Hz to 110 kHz (–3 dB)
- Signal-to-Noise Ratio (SNR): SNR 102 dB
- Channel Separation: > 100 dB (for 1 kHz)
- Intermodulation Distortion: 19 + 20 kHz @ 10 W < 0.0015%
Adjustments
- Bass
- Treble
- Contour (smart adaptive contour)
- Linear (tone control bypass)
- Balance
Physical Dimensions
- Dimensions: 440 × 385 × 143 mm (17.3 × 15.2 × 5.6 in)
- Weight: 22 kg (48.5 lbs)
Package Contents
- Included: Power cord, remote controller with battery, owner’s manual, warranty card
