The PSD 3100 HV was developed with the requirement to combine the performance of our finest pre-amplifiers and converters with the convenience of use of a multi-source player. With an array of professional digital inputs, FM, FM-HD, DAB+ radio, Bluetooth and Connect services, and streaming for local and global Internet and network sources, the PSD 3100 HV is capable of directly converting everything digital into top-quality analogue signals. As such it can be considered as the consistent audiophile answer to all those whose music collection has left the age of the CD behind.
The PSD 3100 HV is the universal control centre for a High-End system, requiring only the connection of suitable power amplifiers or active loudspeakers. At the same time, the device embodies our uncompromising scientific methodology: optimum reproduction quality without harmful interaction between the various analogue and digital sub-assemblies is only possible in a multi-function device if it is based on unique technologies and our many decades of expertise.
Features
Frequency Response
- +0 /-3dB: 0.5 Hz - 300 kHz
Signal-to-Noise Ratio
- 108 / 112 dB
THD | Intermodulation | Channel Separation
- THD: < 0.001%
- Intermodulation: < 0.001%
- Channel Separation: > 108 dB
Nominal Input Sensitivity (High level)
- RCA: 250 mVeff ... 9 Veff / 20 kOhm
- 500 mVeff ...18 Veff / 40 kOhm
Analogue Output
- RCA: nom 1 Veff, max 9.5 Veff / 20 Ohm
- XLR: nom 1.45 Veff, max 19.6 Veff / 40 Ohm
Headphone Output
- 4.4 mm Pentaconn (6 Ohms)

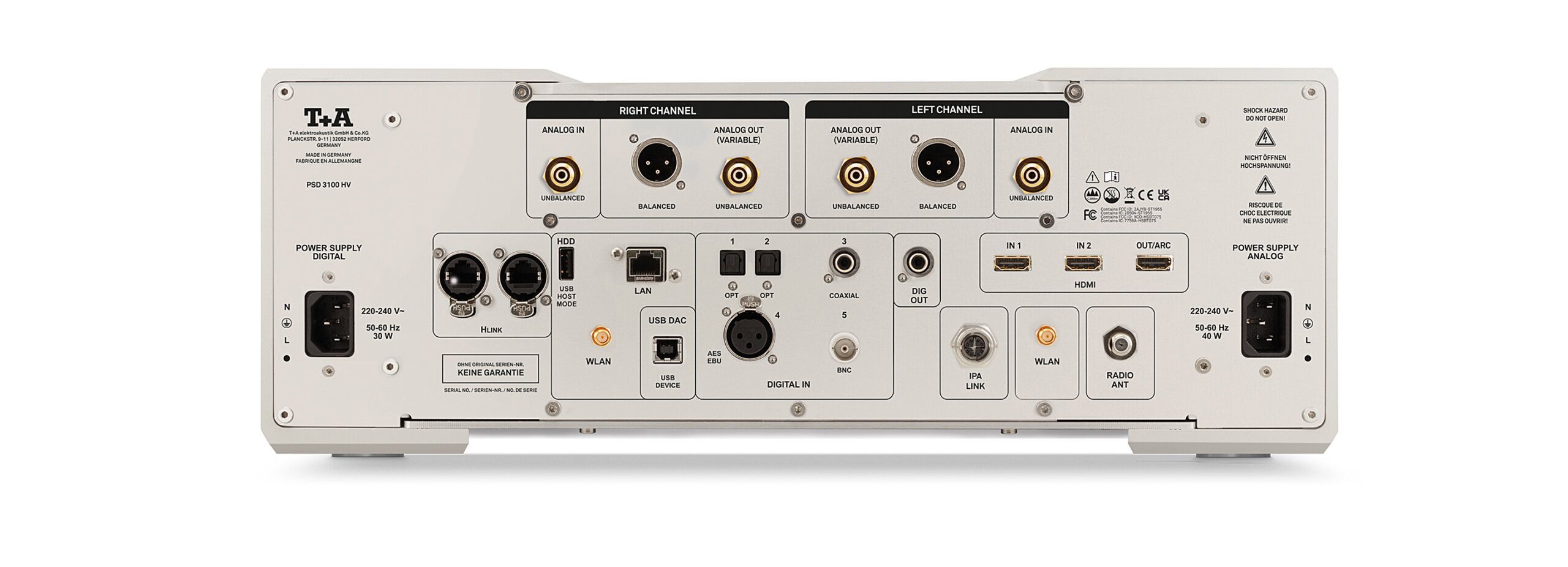

Digital Inputs
- 1 x AES-EBU: 32...192 kHz / 16-24 Bit
- 4 x S/P-DIF:
- 1 x Standard Coax
- 1 x high quality BNC: 32...192 kHz / 16-24 Bit
- 2 x optical TOS-Link: 32...192 kHz / 16-24 Bit
- 1 x USB DAC: Device-Mode with max. 768 kSps (PCM) und DSD 512, supports asynchronous data transfer.
- 2 x USB Master-Mode for USB-Mass storage (Stick or HDD)
- 2 x HDMI IN, 1 x HDMI OUT with ARC
- 1 x IPA (LVDS)
PCM Conversion
- Double-Differential-Quadruple-Converter with four 32-Bit Sigma-Delta D/A-Converter per channel
- 705.6 / 768 kSps conversion rate
DSD Conversion
- T+A-True-1Bit DSD D/A-Converter, up to DSD 512 (24.5 MHz), native bitstream
Upsampling (PCM)
- T+A-Signalprocessor – synchronous upsampling with 4 selectable oversampling algorithms:
- FIR short
- FIR long
- Bezier/IIR
- Bezier
Analogue Filter
- Phase-linear Bessel filter 3rd order, switchable with 60 or 120 kHz cut off frequency
Frequency Response by Sampling Rate
- PCM 44.1 kSps: 2 Hz - 20 kHz
- PCM 48 kSps: 2 Hz - 22 kHz / DSD 64: 2 Hz - 44 kHz
- PCM 96 kSps: 2 Hz - 40 kHz / DSD 128: 2 Hz - 60 kHz
- PCM 192 kSps: 2 Hz - 80 kHz / DSD 256: 2 Hz - 80 kHz
- PCM 384 kSps: 2 Hz - 100 kHz / DSD 512: 2 Hz - 100 kHz
- PCM 768 kSps: 2 Hz - 120 kHz
Performance Metrics
- THD: < 0.001%
- S/N Ratio: > 117 dB
- Channel Separation: > 110 dB
Streaming Client
- Streaming client module 3rd generation with Quad Core processor
Internet Radio
- Airable Internet Radio Service (> 11,000 stations worldwide)
Radio
- FM, FM-HD: 87.5 - 108 MHz; sensitivity 1 µV; S/N > 65 dBA
- DAB, DAB+: 168 -240 MHz (Band III); sensitivity 2.0 µV, S/N > 96 dBA
- Features: RDS/RDBS, Station name (PS), Program type (PTY), Radiotext (RT)
Bluetooth
- Standard: A2DP (Audio), AVRCP 1.4 (Control)
- Codec: aptX® HD, SBC, AAC
Power
- Mains: 2 x 110-120 V or 220-240 V, 50-60 Hz
- Operation: 30 W digital / 40 W analogue
- Standby: < 0.5 W
Dimensions / Weight
- W x H x D: 17 x 46 x 46 cm
- Weight: 26 kg
Accessories
- 2x power cords
- Remote control F 3100
- BNC adapter
Finishes
- Silver lacquer 47
- Titanium lacquer 64
